The asymmetrical aluminum Am'D carabiner has a D shape particularly suited for connection to diverse equipment such as descenders or positioning lanyards. Its fluid interior design and Keylock system facilitate manipulations. The Am’D carabiner is available in three locking systems: SCREW-LOCK manual system or TRIACT-LOCK and BALL-LOCK automatic systems.

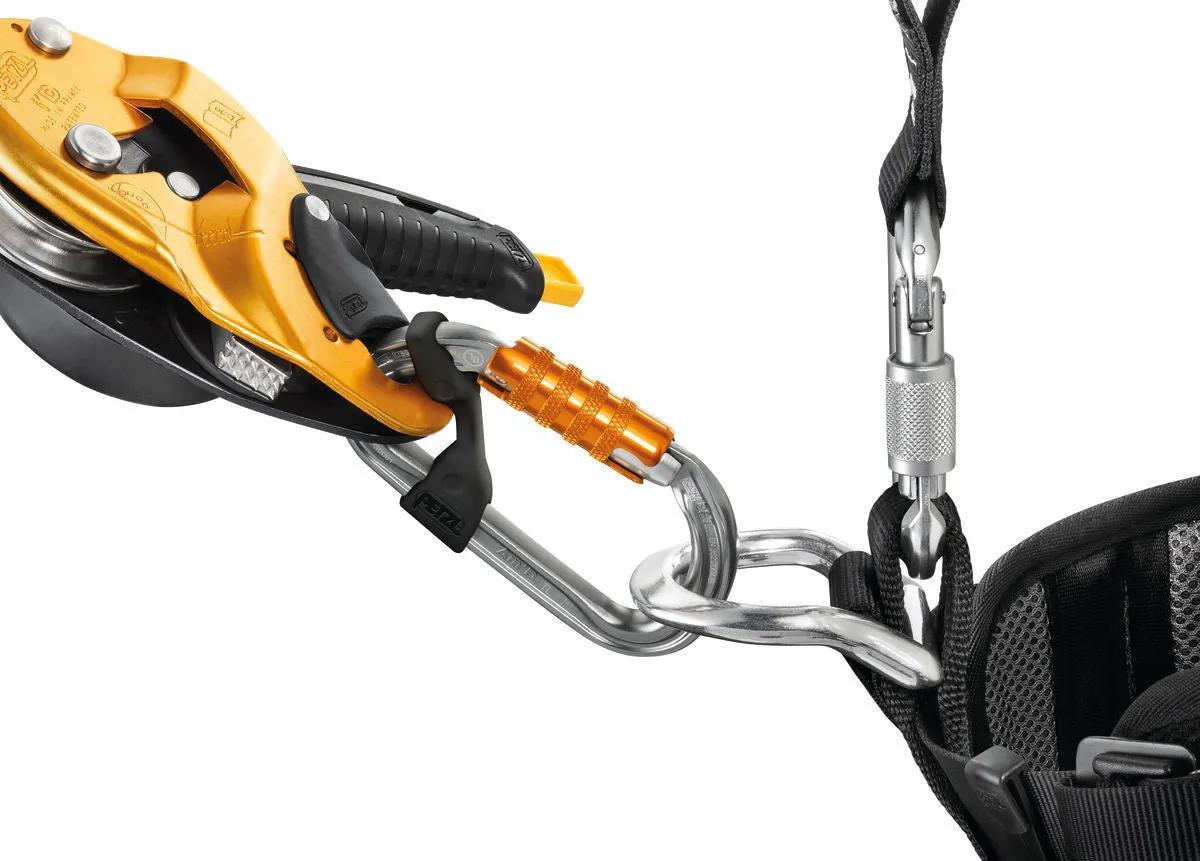

The D shape of the Am'D is particularly suited for connection to equipment such as descenders or positioning lanyards. It can be connected to the CAPTIV bar to favor positioning of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.
- Fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
- Keylock system to avoid any involuntary snagging of the carabiner
- Carabiner's H profile:
- Ensures an improved strength-to-weight ratio
- Protects markings from abrasion
- Available in three different locking systems:

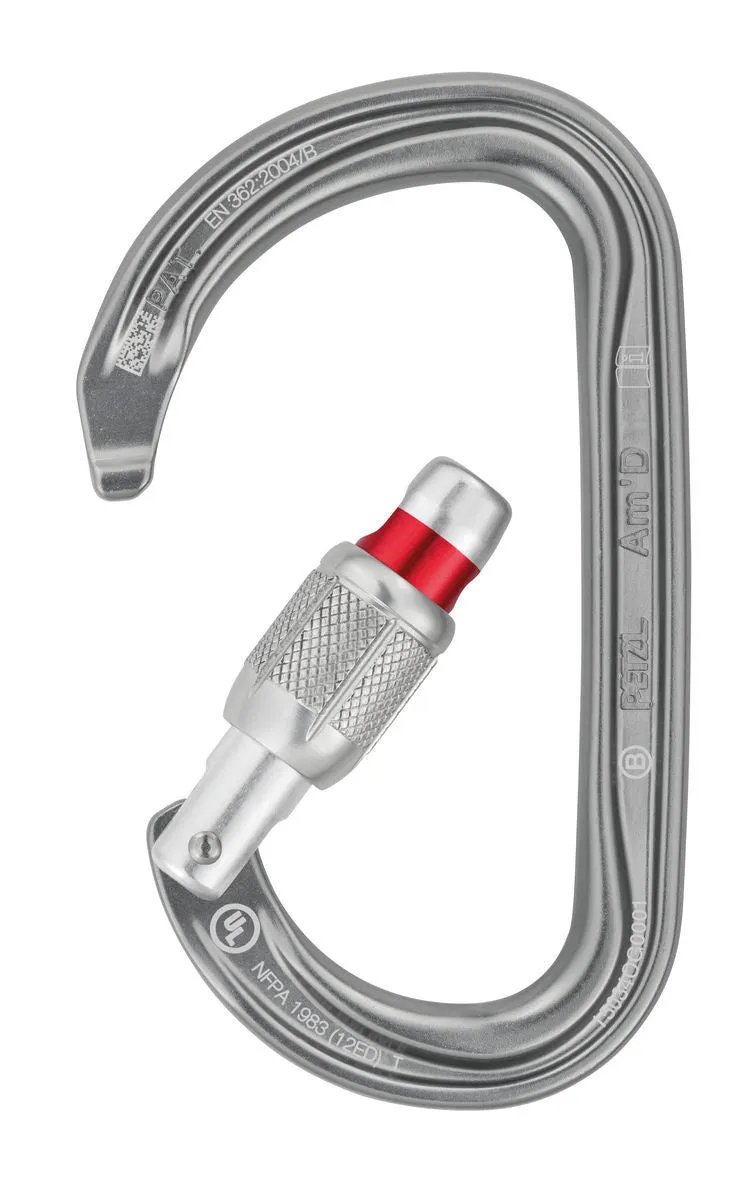

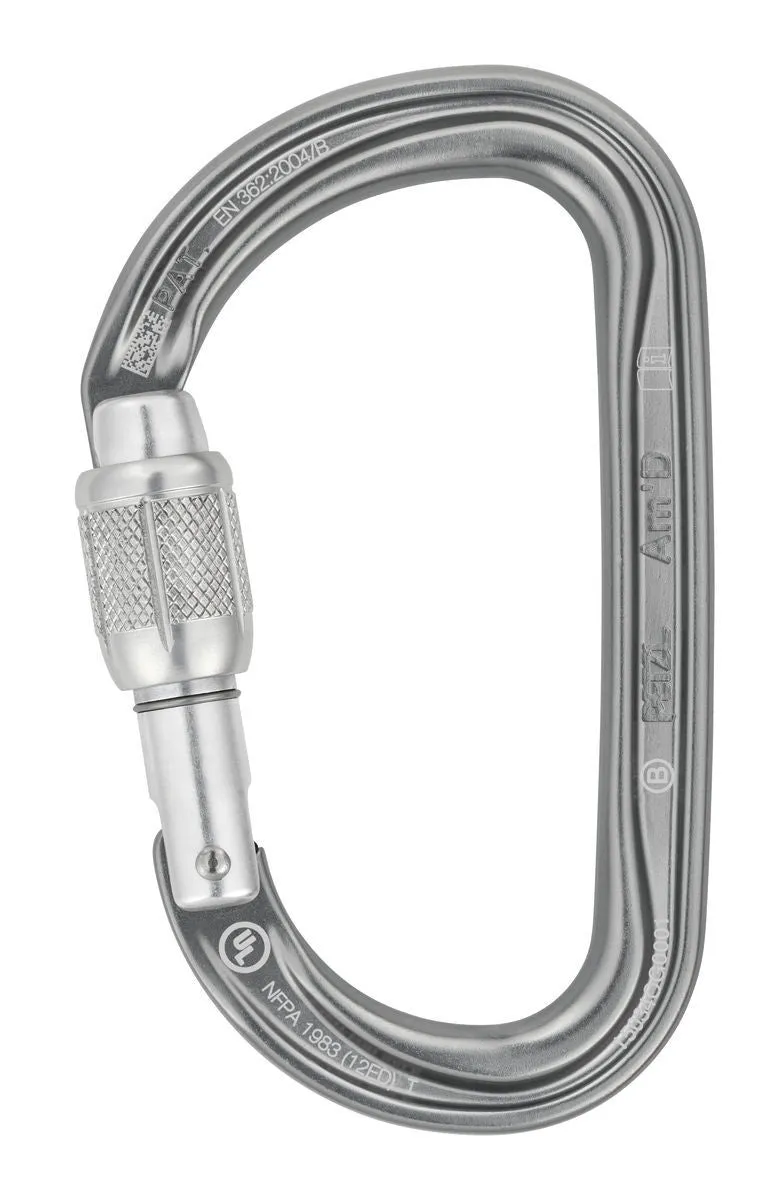

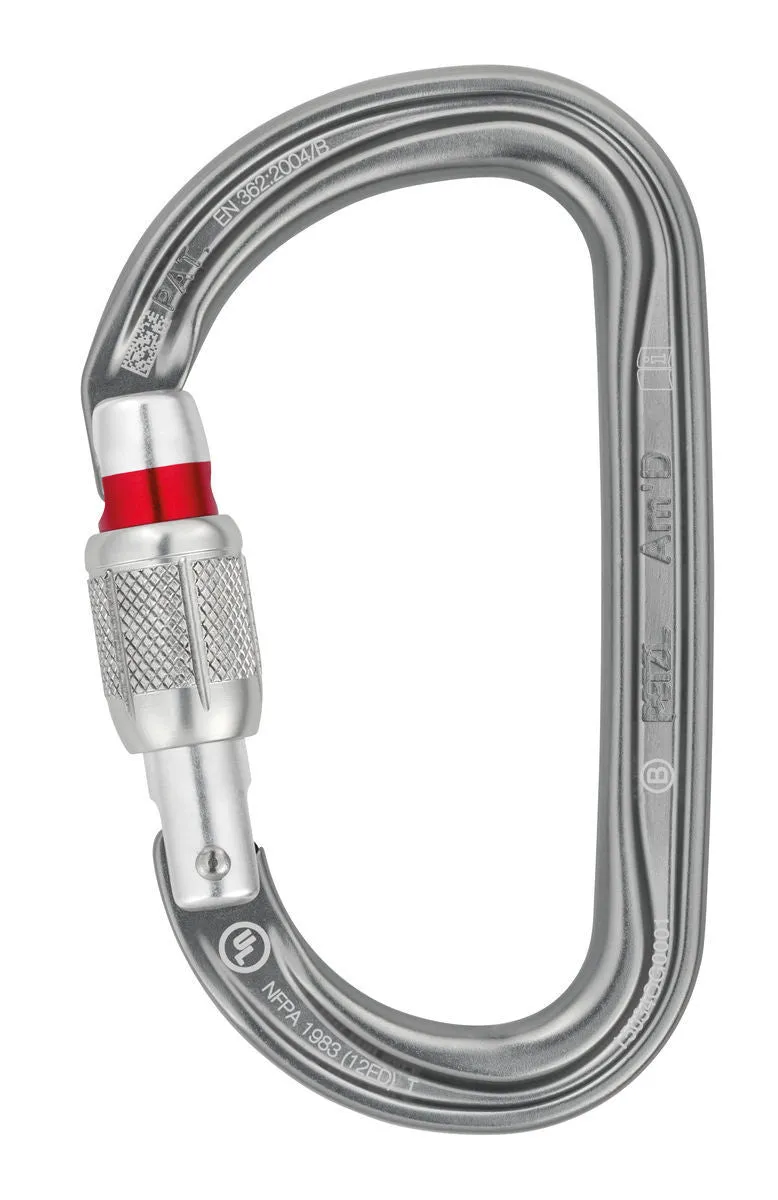

- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked

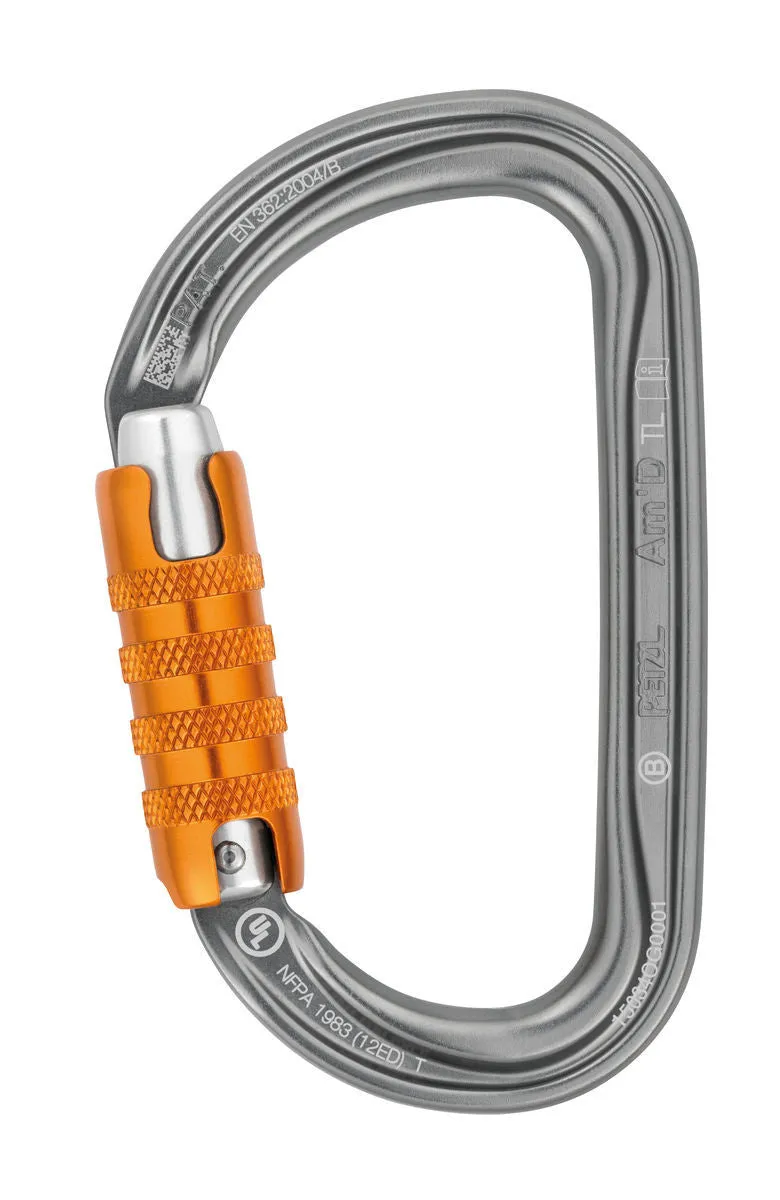

- TRIACT-LOCK: automatic locking with triple-action gate opening

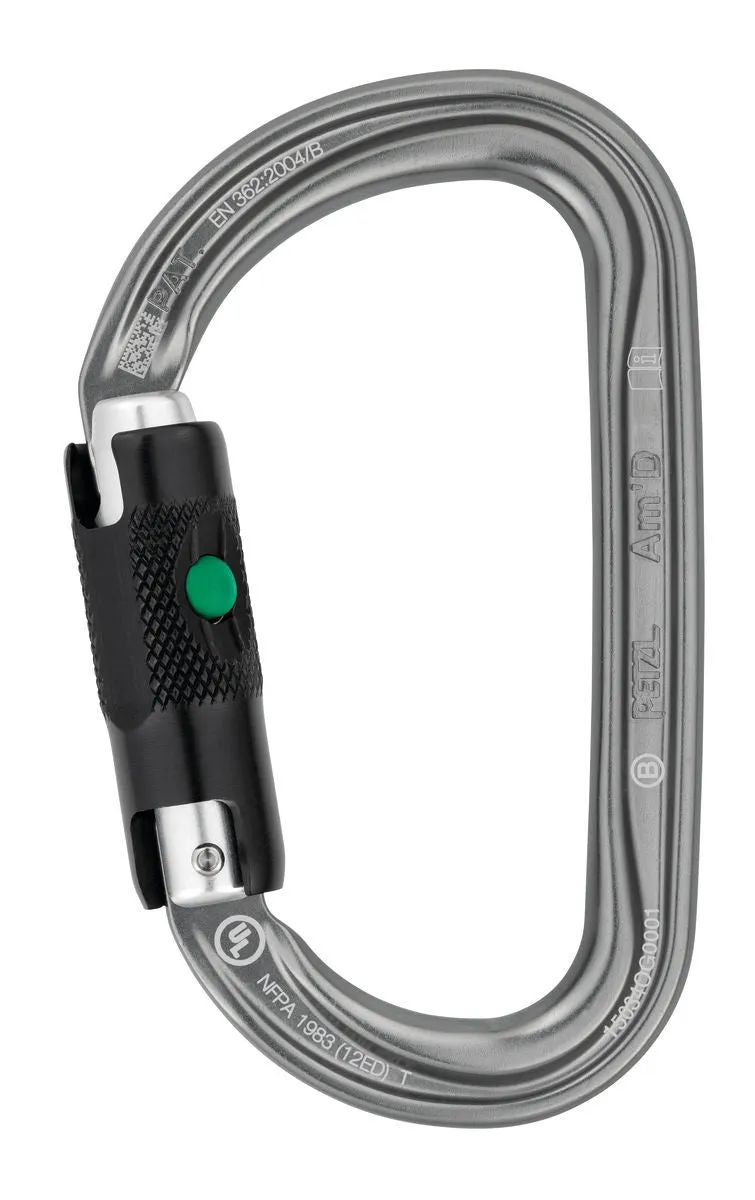

- BALL-LOCK: automatic locking with triple-action gate opening, with lock indicator

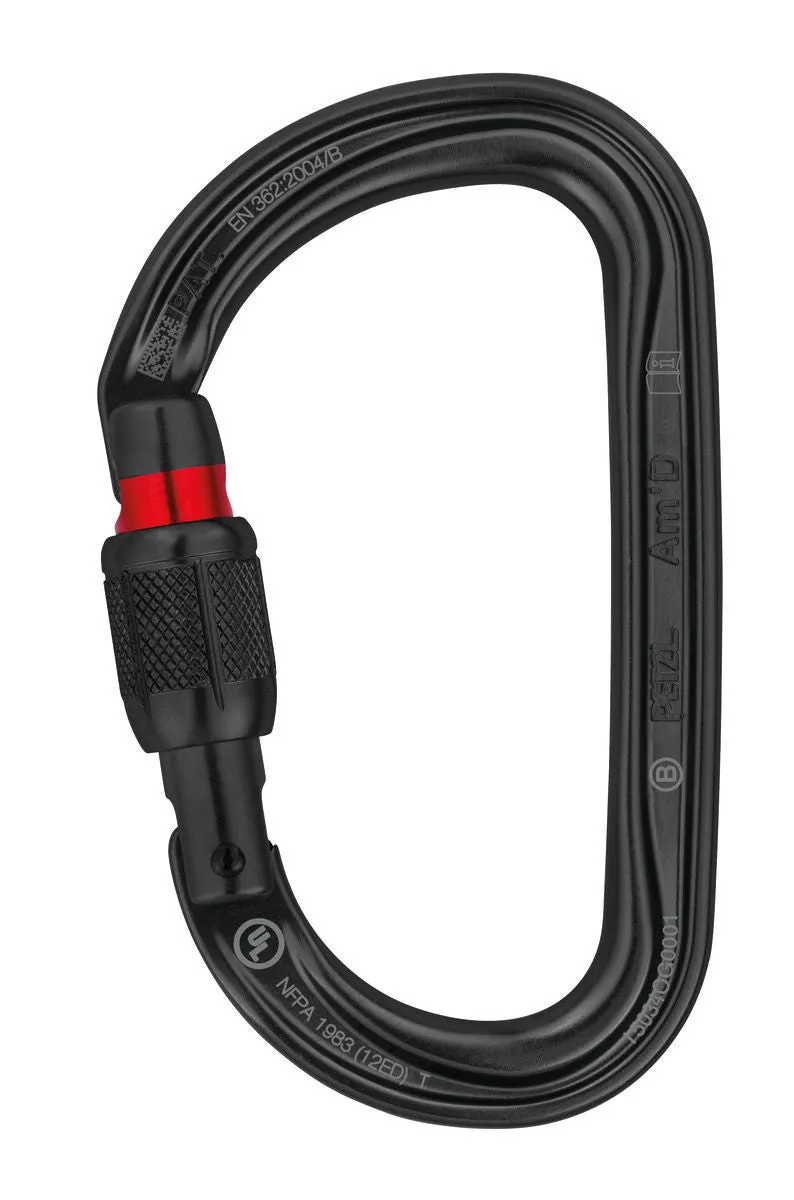

- Also available in black (SCREW-LOCK and TRIACT-LOCK)
Material: Aluminum
Certification(s): CE EN 362, EAC, NFPA 1983 Technical Use
| M34A SL | M34A TL | M34A BL | M34A SLN | M34A TLN | |
| Weight | 70 g | 75 g | 75 g | 70 g | 75 g |
| Locking system | SCREW-LOCK | TRIACT-LOCK | BALL-LOCK | SCREW-LOCK | TRIACT-LOCK |
| Color(s) | gray | gray | gray | black | black |
| Major axis strength | 27 kN | 27 kN | 27 kN | 27 kN | 27 kN |
| Minor axis strength | 8 kN | 8 kN | 8 kN | 8 kN | 8 kN |
| Open gate strength | 8 kN | 8 kN | 8 kN | 8 kN | 8 kN |
| Gate opening | 25 mm | 24 mm | 25 mm | 25 mm | 24 mm |
| Guarantee | 3 years | 3 years | 3 years | 3 years | 3 years |
