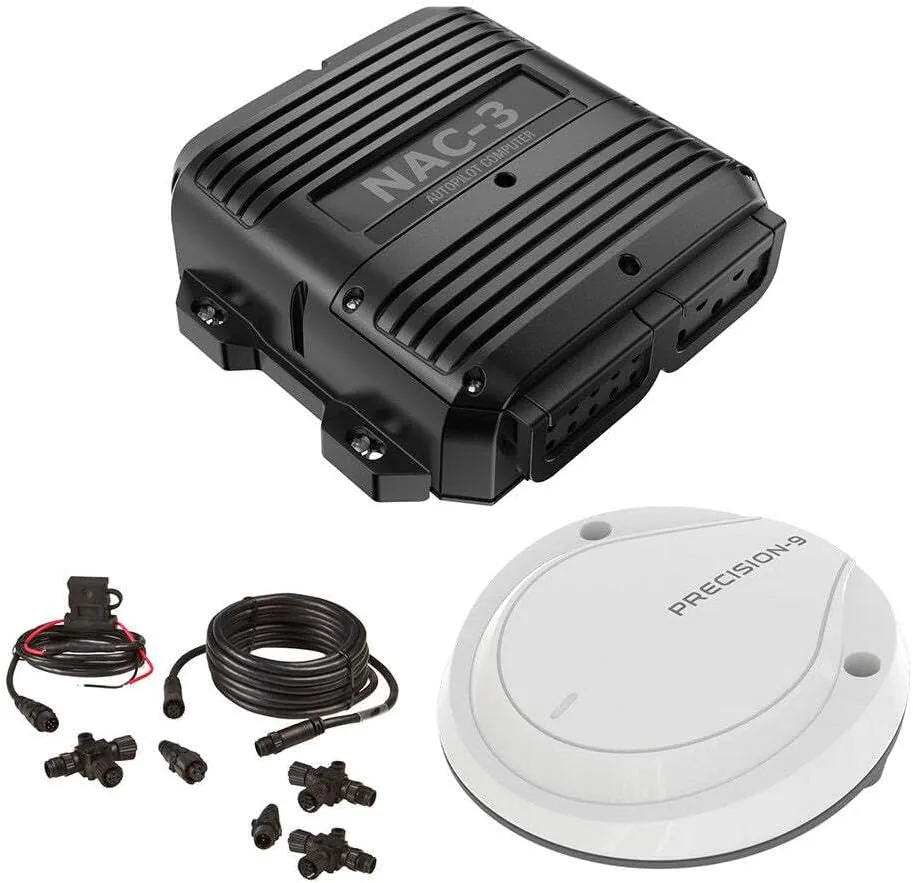

Simrad NAC-3 VRF High-current Core Pack Model: 000-13338-001 UPC: 9420024155660 NAC-3 VRF Core Pack: Comprising of the high-current NAC-3 autopilot computer and Precision-9 compass. The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10 metres (33 feet) or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak). Specifications Operating temperature 0 to 55°C protection IPX7 Electrical Power supply 12/24vDC Reversible motor control of rudder Max continious load 30A, peak 50A for 1s On/off solenoid control of rudder 12/24V DC, common, load range 10mA to 10A, off current Engage output for bypass/clutch 12/24V DC, min 10mA, max 3A NFU port/stbd input and mode indicator output External open/close contact, common ret, contact current max 30mA Mode input External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA External alarm output for buzzer/relay Max 100mA, voltage level as local supply Networking
- Product Dimensions : 16 x 10 x 10 inches; 17 Pounds
- Date First Available : October 24, 2016
- Manufacturer : Simrad
