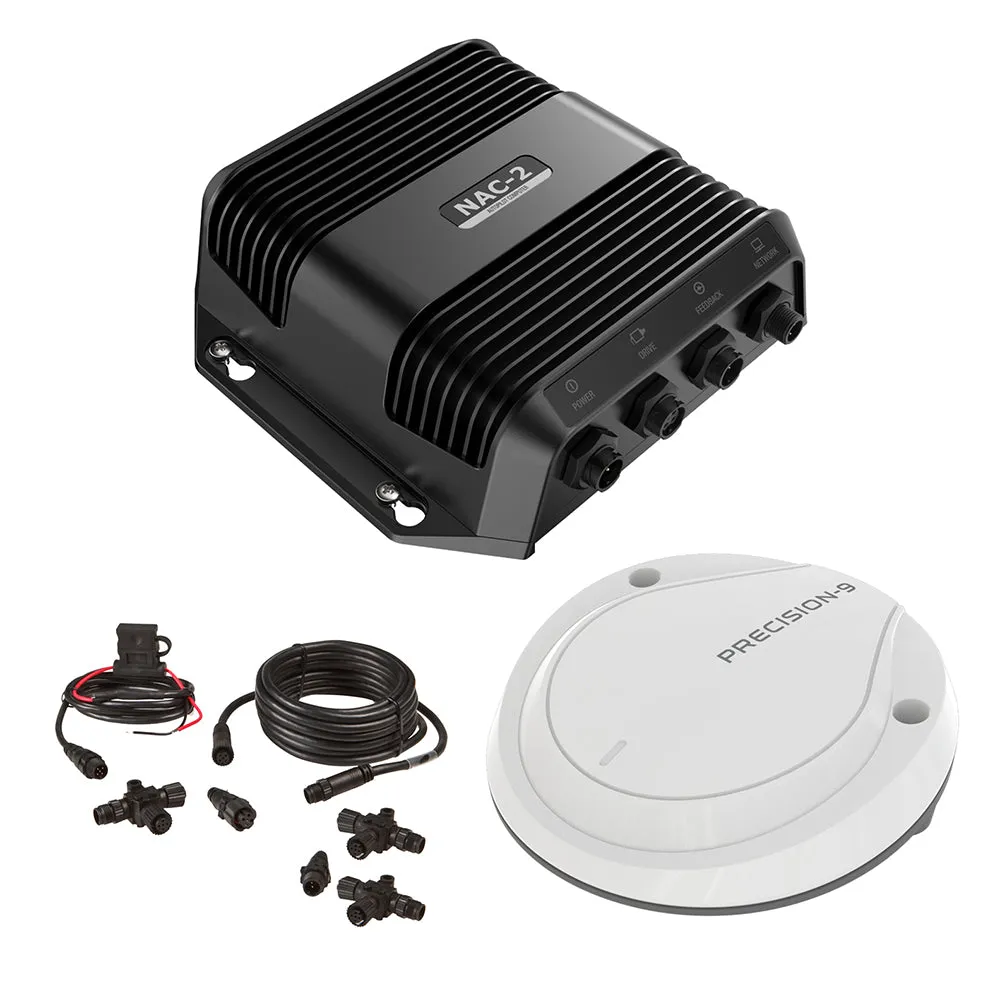

NAC-2 VRF Core Pack - NAC-2, Precision-9 & N2k Starter Kit
Comprising of the high-current NAC-2 autopilot computer, Precision-9 compass and N2k Starter Kit.
The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).
Precision-9 Compass
The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B & G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.
N2k Backbone Starter Kit
NMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators.
Features:
- Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000®
- Heading and ROT calculated using sensor data from 9 axes of rotation and motion
- Accurate and reliable solid-state sensor technology
- Heading accuracy of ±2° after calibration
- Easily adjustable mounting bracket allows bulkhead or up-mast installation
- IPX7 waterproof. Best in class.
- Simple installation with a single NMEA 2000® connection
Specifications:- Operating temperature: -25°C to 55°C (13°F to 131°F)
- Protection: Splashproof, IPx5
- Weight: 0.6 kg (1.3 lbs)
- Overall Dimensions: Width: 7.1" \ 180mm / Height: 2.2" \ 57mm
- Power supply: 9-31.2 V DC
- Load: 140 mA drive unit load
- Performance: Drive: 8 A cont., 16A for 1s
- Network: 1xMicroC (NMEA2000)
- Feedback: Variable voltage/resistive 0-5V
- Drive output: To PUMP-1 or HELM-1
- Power supply: 9-31.2 V DC
- Solenoid: 12/24V DC, common, load range 10mA to 10A, off current <1mA
- Clutch: 12/24V DC, min 10mA, max 3A
Precision-9 Specifications:
- Dimensions: H: 36mm (1.42"), W & D: 119mm (4.69")
- Weight: Module - 165g (5.8oz), Bracket - 130g (4.6oz)
- Supply and interface: 8-16 V via NMEA 2000
- Power consumption: 0.4 W
- NMEA 2000 Load Equivalence No. (LEN): 1
- NMEA 2000 ports (input/output): 1
- Calibration: Automatic (User Prompted)
- Repeatability: ± 1.0° (or better)
- Roll/Pitch range: ± 45°
- Heading accuracy: ± 2° after calibration
- Dynamic performance: with random excitation of ± 10° at max 1 Hz: |Heading error <2°: with heading step input of 90° at a rate of 10°/s: |Heading error 10 sec. after turn <2°
- Environmental protection: IPx7
- Compass safe distance: 0.5M(1.7')
- Temperature range operation: -25 to 65°C (-13 to 149°F)
- Temperature range Storage: -30 to 70°C (-22 to 158°F)
