Overview

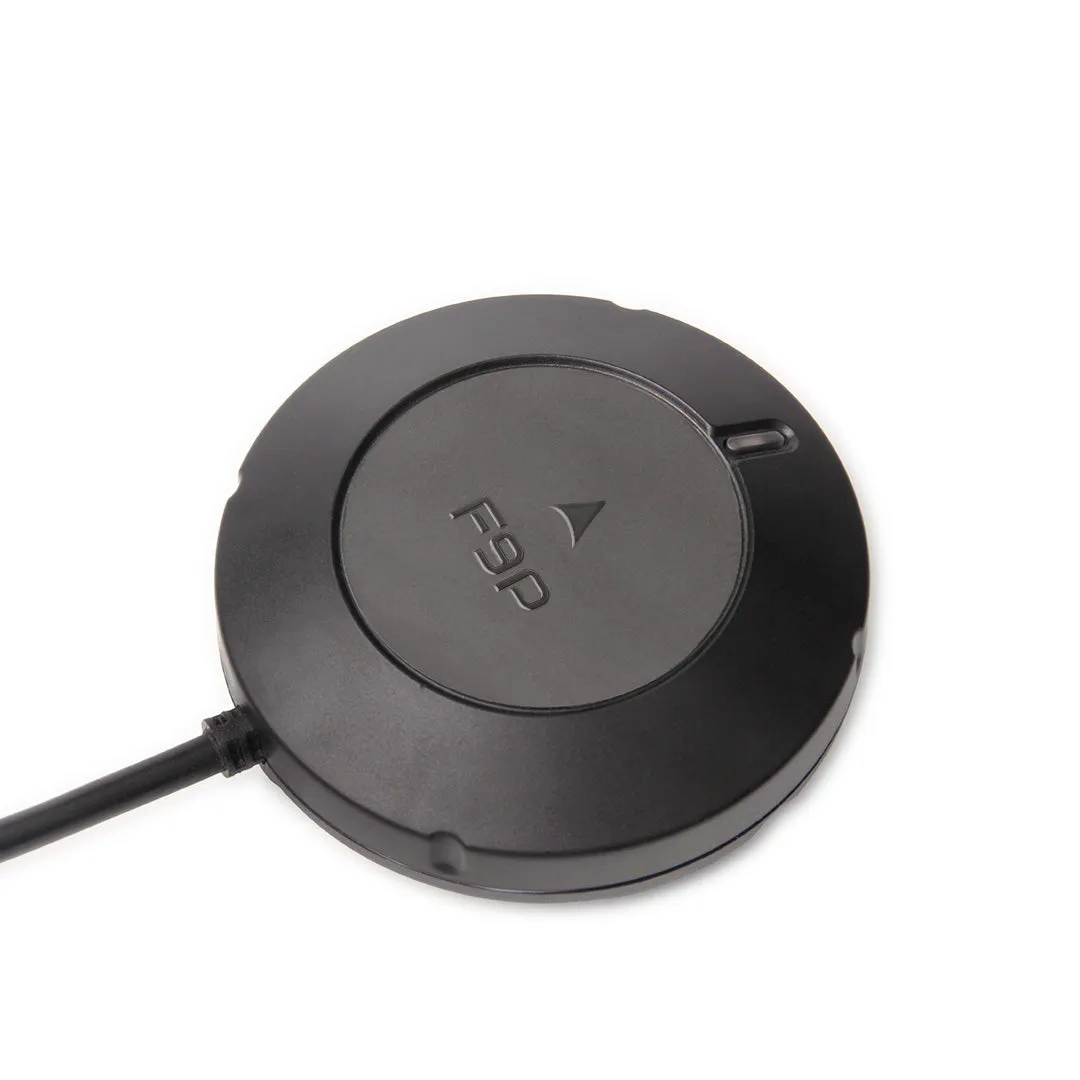

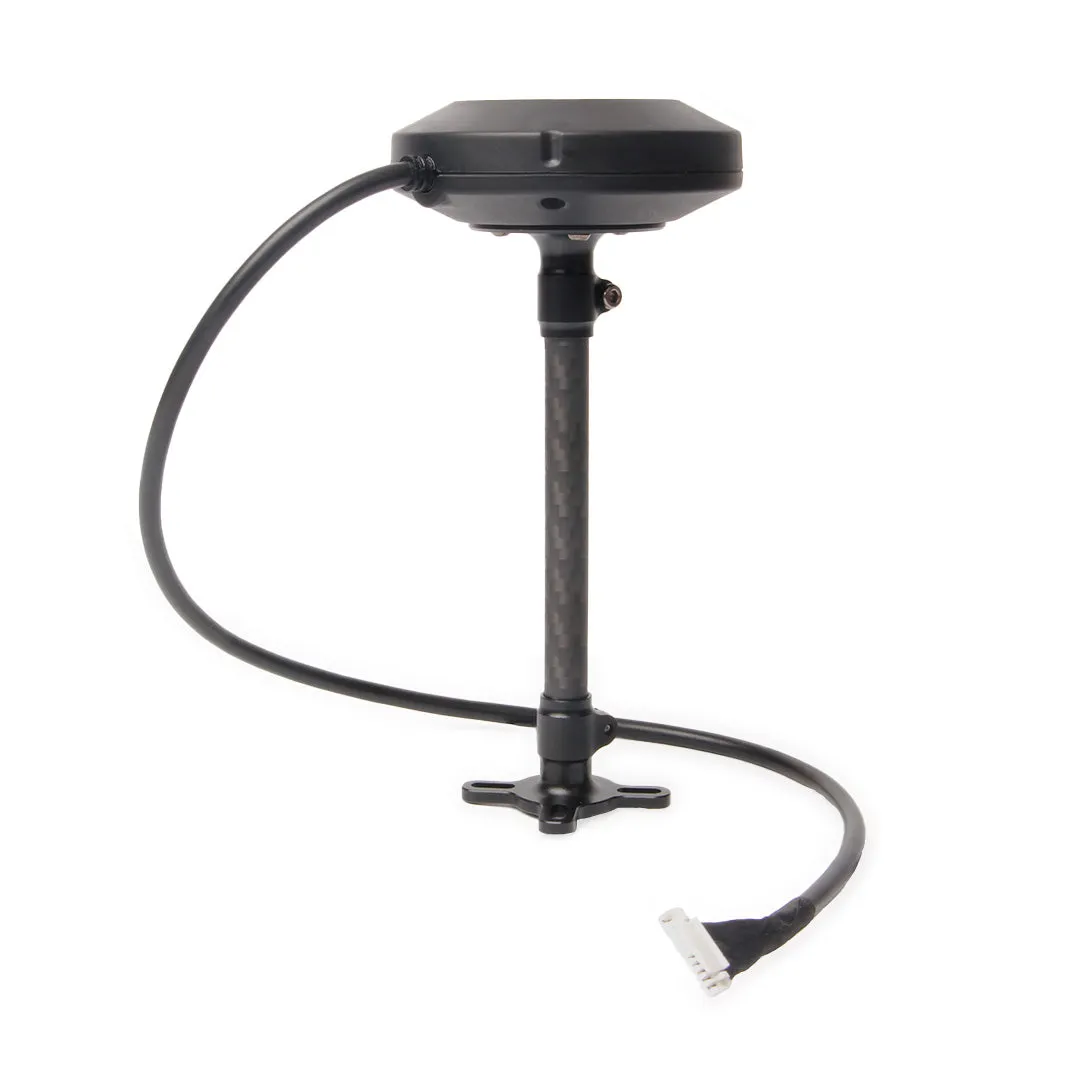

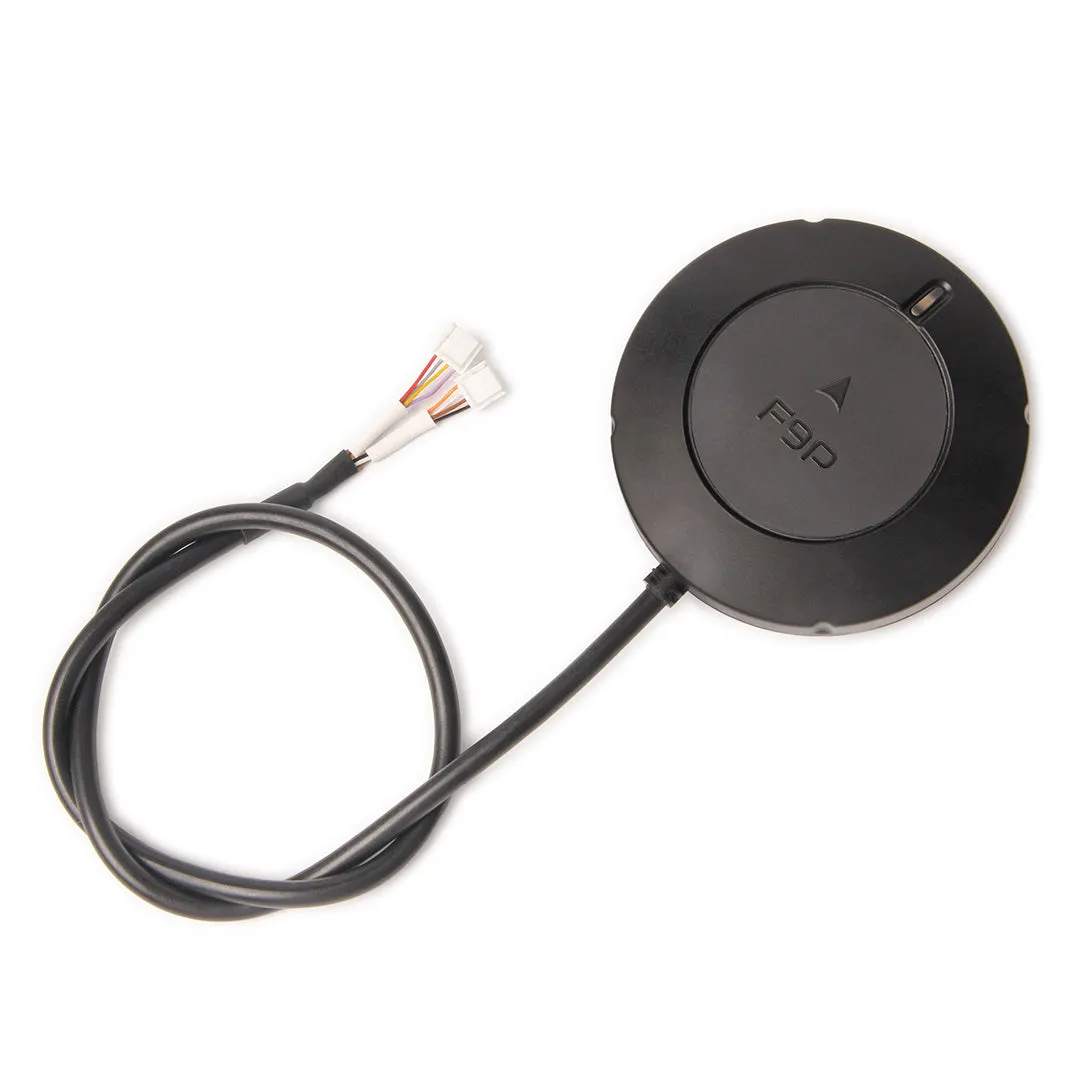

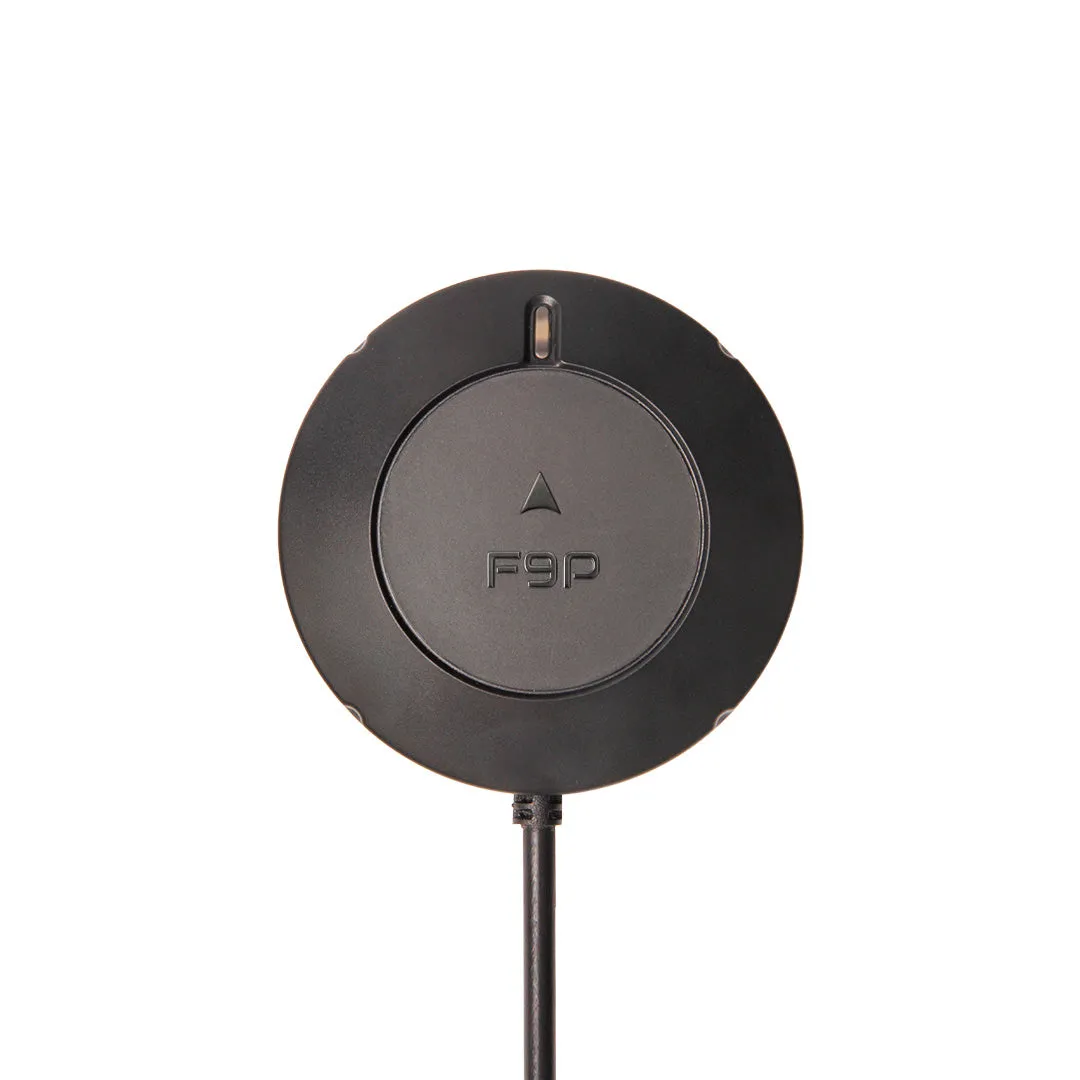

The H-RTK NEO-F9P GPS integrates the advanced u-blox NEO-F9P GNSS receiver, high-precision RM3100 compass, and a tri-color LED indicator. This high-precision system delivers multi-band RTK capabilities with rapid convergence times, reliable performance, and fast update rates, which is ideal for highly dynamic, high-volume applications requiring centimeter-level accuracy. Multiple antenna options are available to suit diverse use cases.
Supporting concurrent reception of GPS (L1 & L5), GLONASS, Galileo, BeiDou, and QZSS signals, it offers flexible connectivity in both UART and DroneCAN options. The DroneCAN version includes an MCU, IMU, and barometer, enabling robust communication and seamless integration for advanced UAV systems.
The high-precision PNI RM3100 compass ensures accurate orientation and stability with exceptional reliability, making it perfect for demanding UAV applications. It features high resolution, low power consumption, strong noise immunity, a broad dynamic range, and high sampling rates. Measurements are stable across temperatures and inherently free from offset drift.
Features
- Advanced GNSS Receiver: High precision u-blox NEO-F9P GNSS receiver with reliable and stable centimeter-level positioning
- Integrated RM3100 Compass: Accurate and stable orientation data
Rapid RTK Convergence: Advanced multi-frequency DGNSS algorithms enable quick RTK Fix - High-Gain Antenna: Enhanced signal reception across GNSS frequencies
- Durable Design: IP66-rated for protection against dust and water, suitable for harsh environments.
- Advanced Filtering & Amplification: Hybrid Coupler, SAW filter, and LNA architecture deliver exceptional signal strength and effective interference rejection
- Versatile Installation: Multiple antenna options offer flexibility for various situations
- DroneCAN Option: Offers MCU, IMU, barometer, and robust communication for advanced UAV systems
Specification

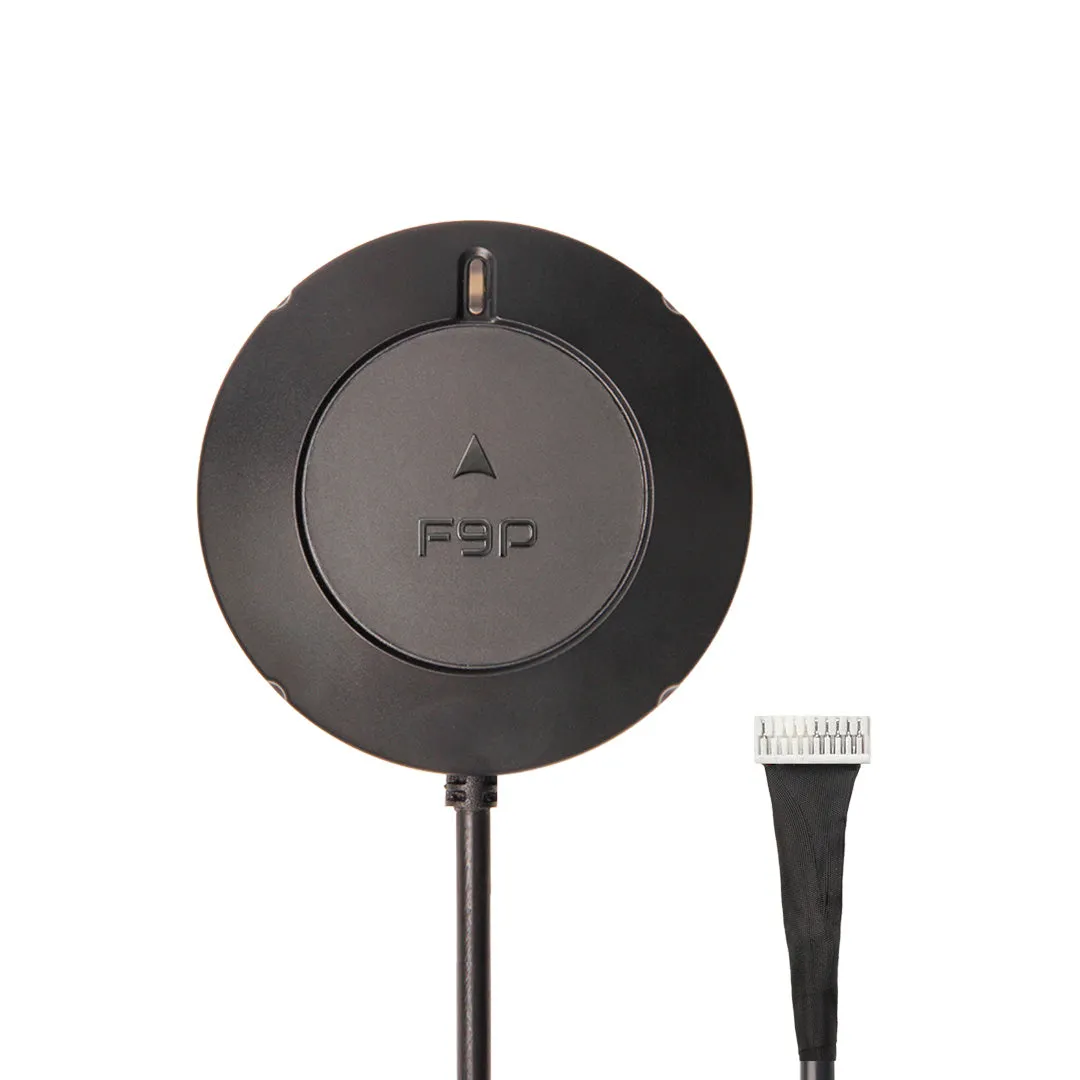

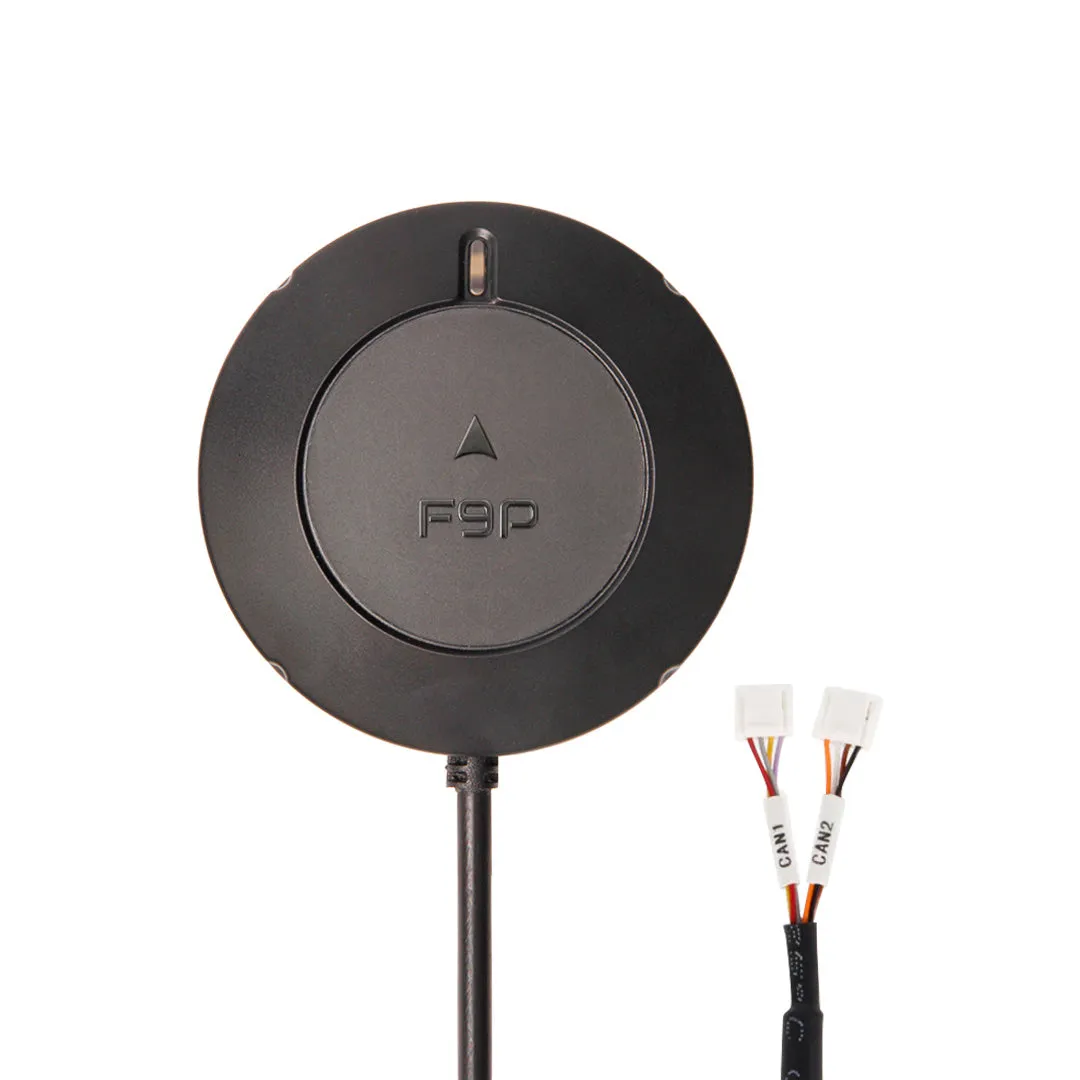

| Product Model | |||
|---|---|---|---|
| SKU | 12060 | 12061 | 12072 |
| Connector Type | GH1.25 10pin cable | GH1.25 6pin cable | GH1.25 4pin cable |
| Applicable Ports | Holybro GPS1 Port | Holybro or Cubepilot GPS2 Port | Pixhawk CAN Port |
| Processor | NA | NA | STM32G473 |
| IMU & Barometer | NA | NA | ICM42688 & ICP20100 |
| Communication Protocol | UART | DroneCAN | |
| GNSS Receiver | u-blox NEO-F9P | ||
| Recommended Application | Rover (UAV, Marine, Land Vehicle, etc) | ||
| Antenna Type | Stacked Ceramic Patch Antenna | ||
| Antennas Peak Gain | L1: 1.8dBi L5: 0.5dBi | ||
| Antennas LNA Gain | 28 ± 2dB | ||
| Magnetometer | High Precision PNI RM3100 | ||
| GNSS | BeiDou, Galileo, GLONASS, GPS / QZSS | ||
GNSS Band | B1I, B2a, E1B/C, E5a, L1C/A, L1OF, L5 | ||
| Number of Concurrent GNSS | 4 | ||
| Dynamic Heading accuracy | 0.3 degrees | ||
| Horizontal Positioning accuracy | PVT: 1.5 m CEP SBAS: 1.0m CEP RTK: 0.01 m 1ppm CEP | ||
| Vertical Positioning accuracy | PVT: 2.0 m R50 SBAS: 1.5m R50 RTK: 0.01 m 1ppm R51 | ||
| Communication Protocol | UART or DroneCAN 1Mbit/s | ||
| GNSS Protocol | NMEA UBX binary RTCM 3.3 SPARTN 2.0.1 | ||
| Time-TO-First Fix | Hot Start: 3s Aided starts: 4s Cold starts: 27s | ||
| Navigation Update Rate | GPS GLO GAL BDS: RTK: 7Hz Max PVT: 7Hz Max RAW: 10Hz | ||
| Anti-spoofing | Advanced anti-spoofing algorithms | ||
| Operational limits | Dynamics: ≤ 4 g Altitude: 80,000 m Velocity: 500 m/s | ||
| Working voltage | 4.75V~5.25V | ||
| Operating Temperature | -25℃ to 85℃ | ||
| Current Consumption | ~250mA | ||
| Cable Length(Contact us for customization) | 40cm (default) | ||

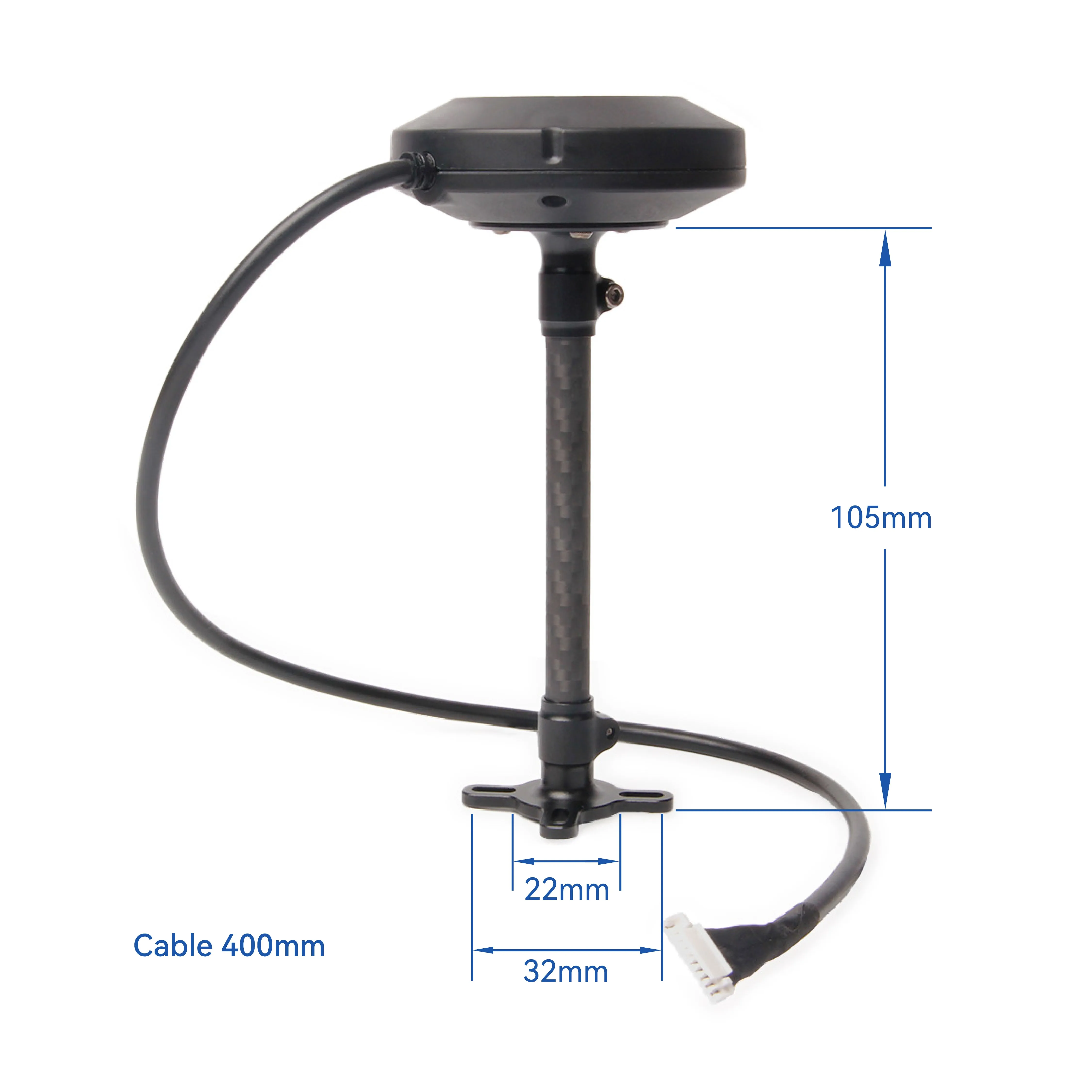

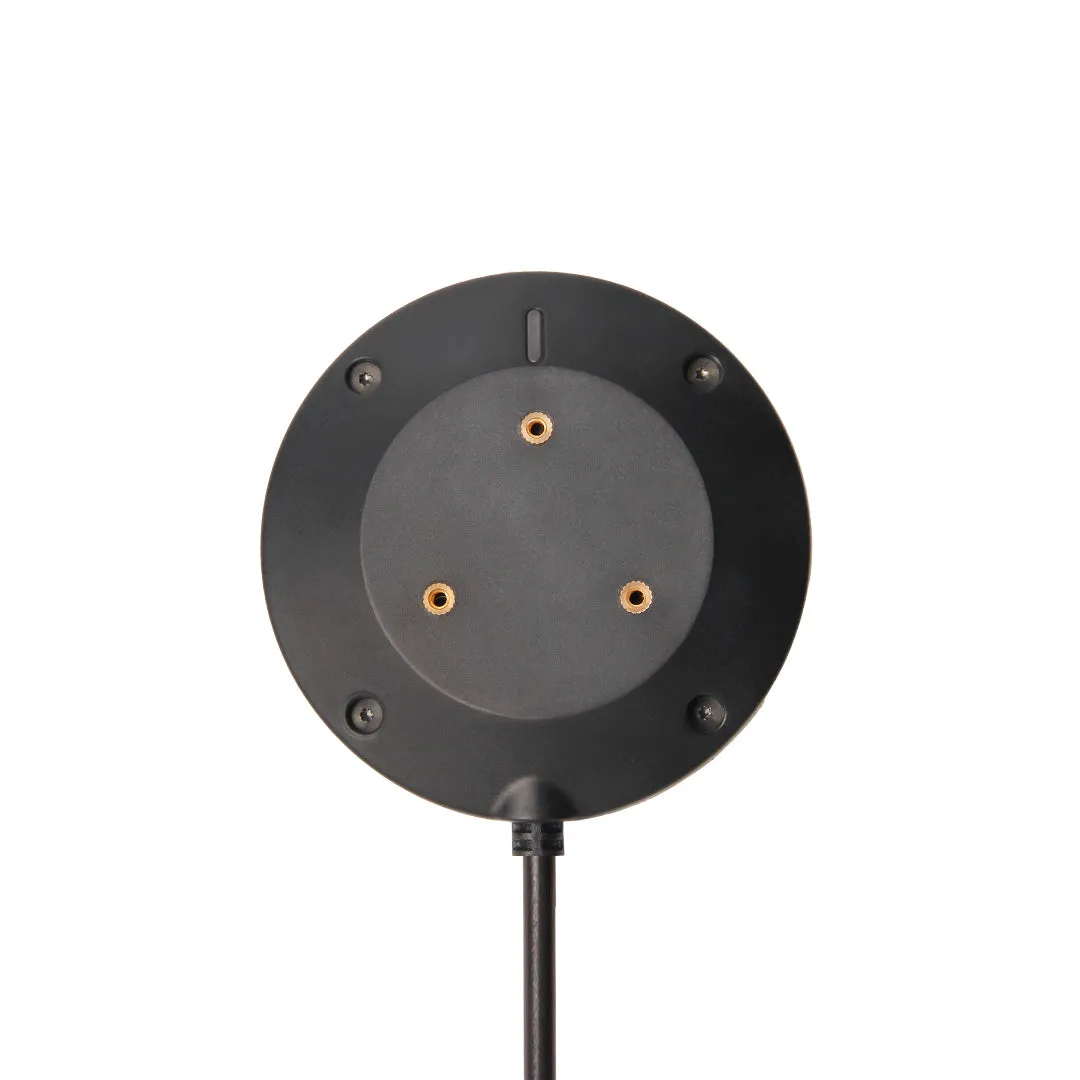

| Dimensions | Diameter: 61.99mm, Height: 21mm | ||

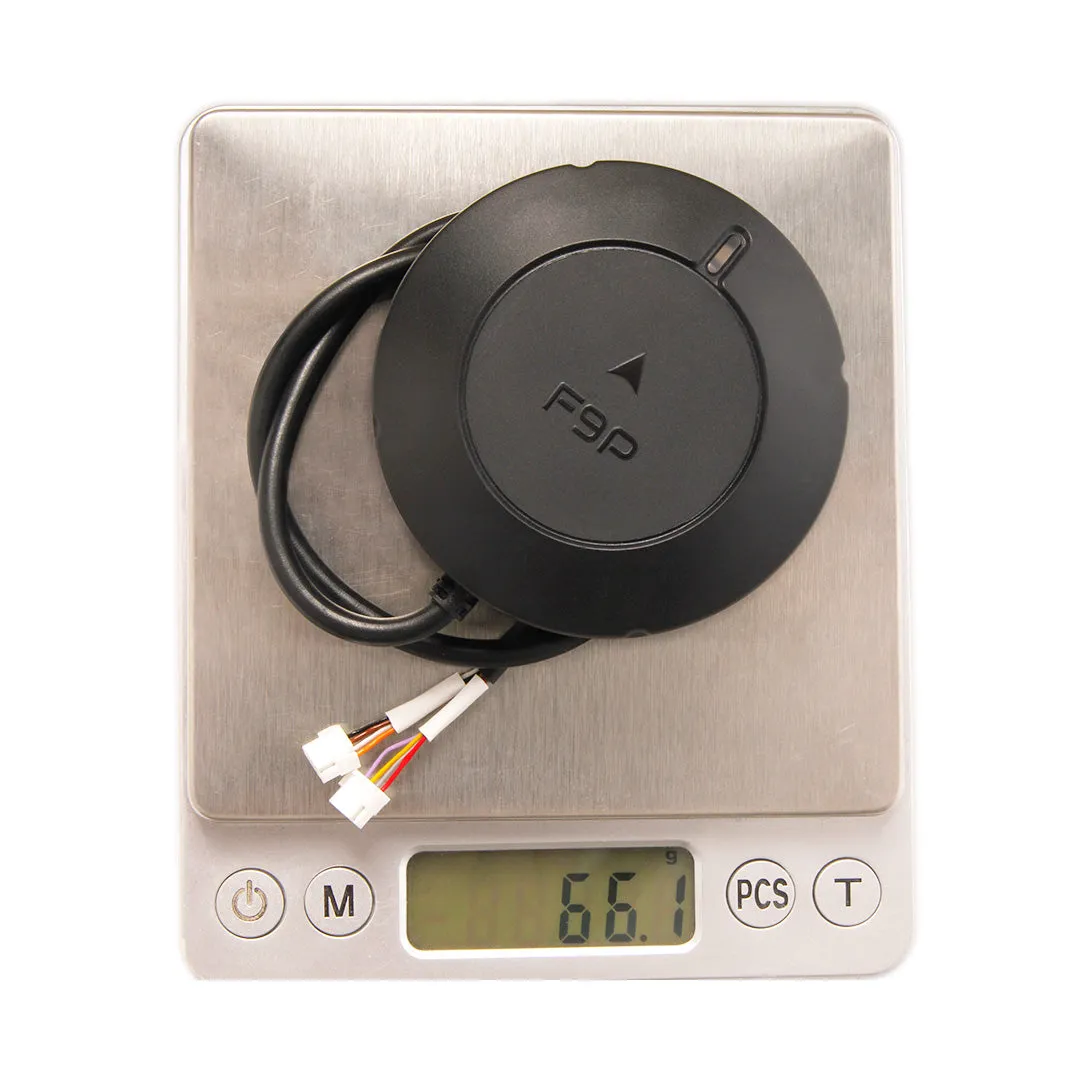

| Weight | 63.5g | ||
| Waterproof IP Rating | IP66 | ||
Sample Wiring DiagramReference Links
- User Guide: Setup & Getting Started (Ardupilot)
- User Guide: Setup & Getting Started (PX4)
- GPS Heading/Yaw (Aka Moving baseline) Guide
- Pinout
- Dimensions
- Downloads
- Spec Comparison With Different Antennas
Package Included:

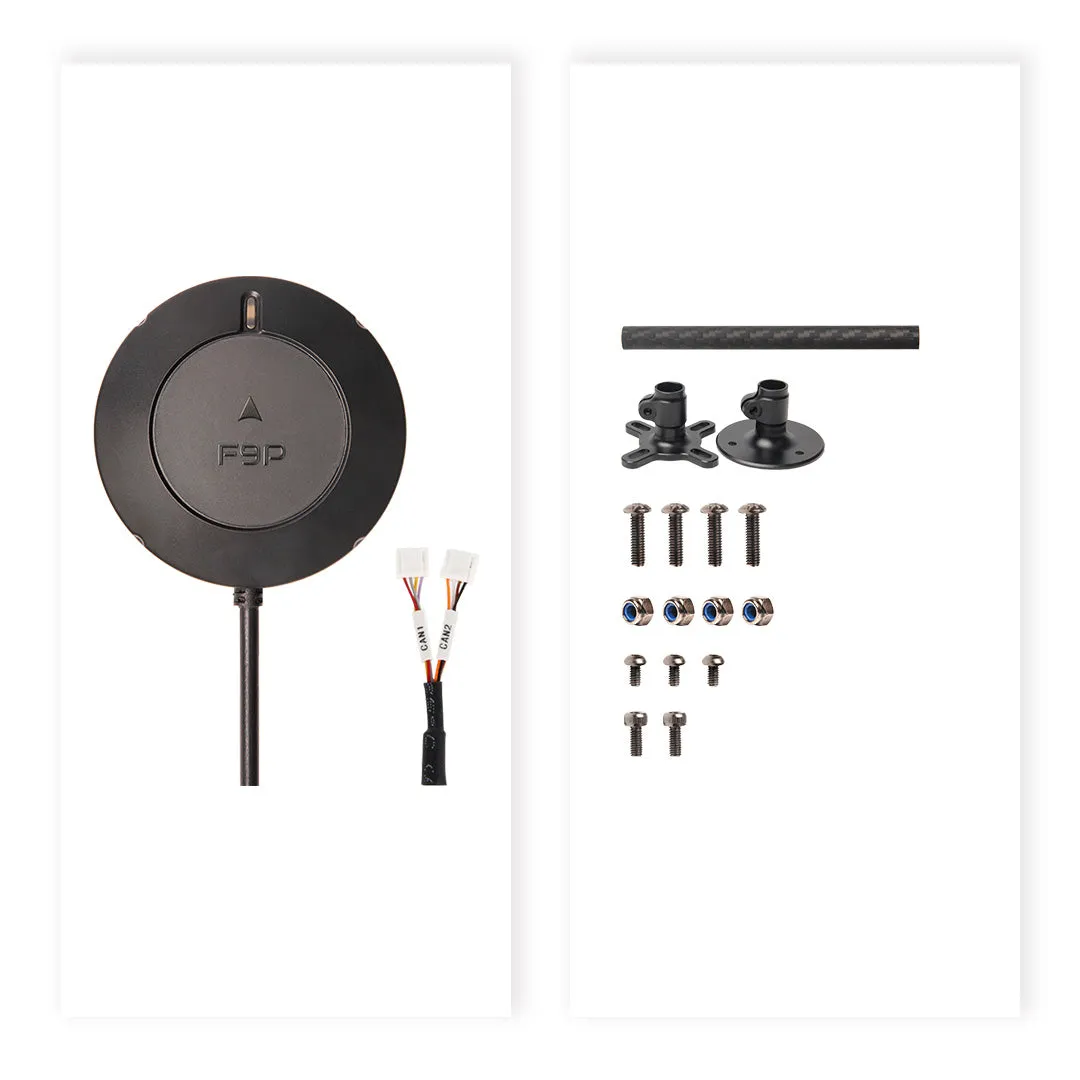

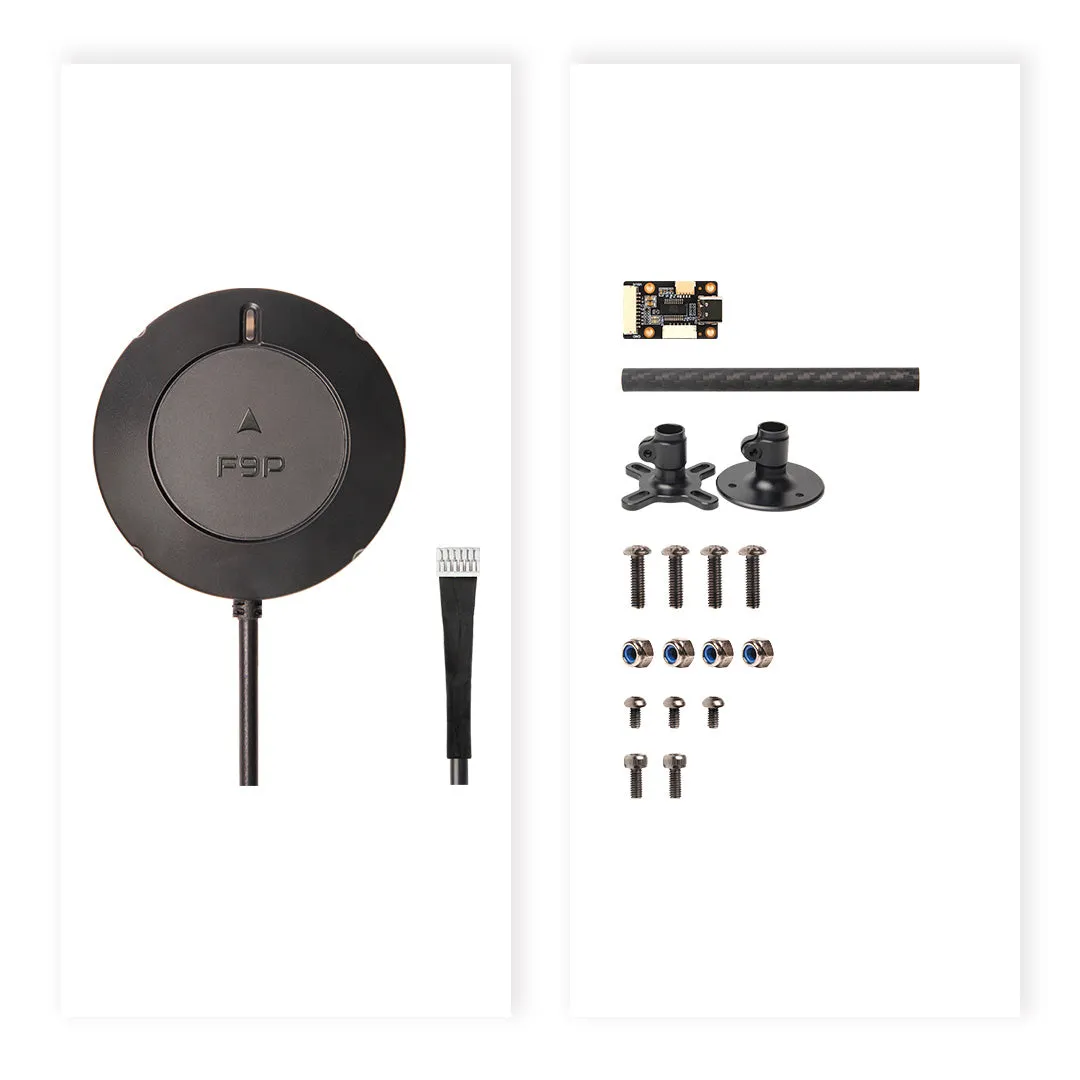

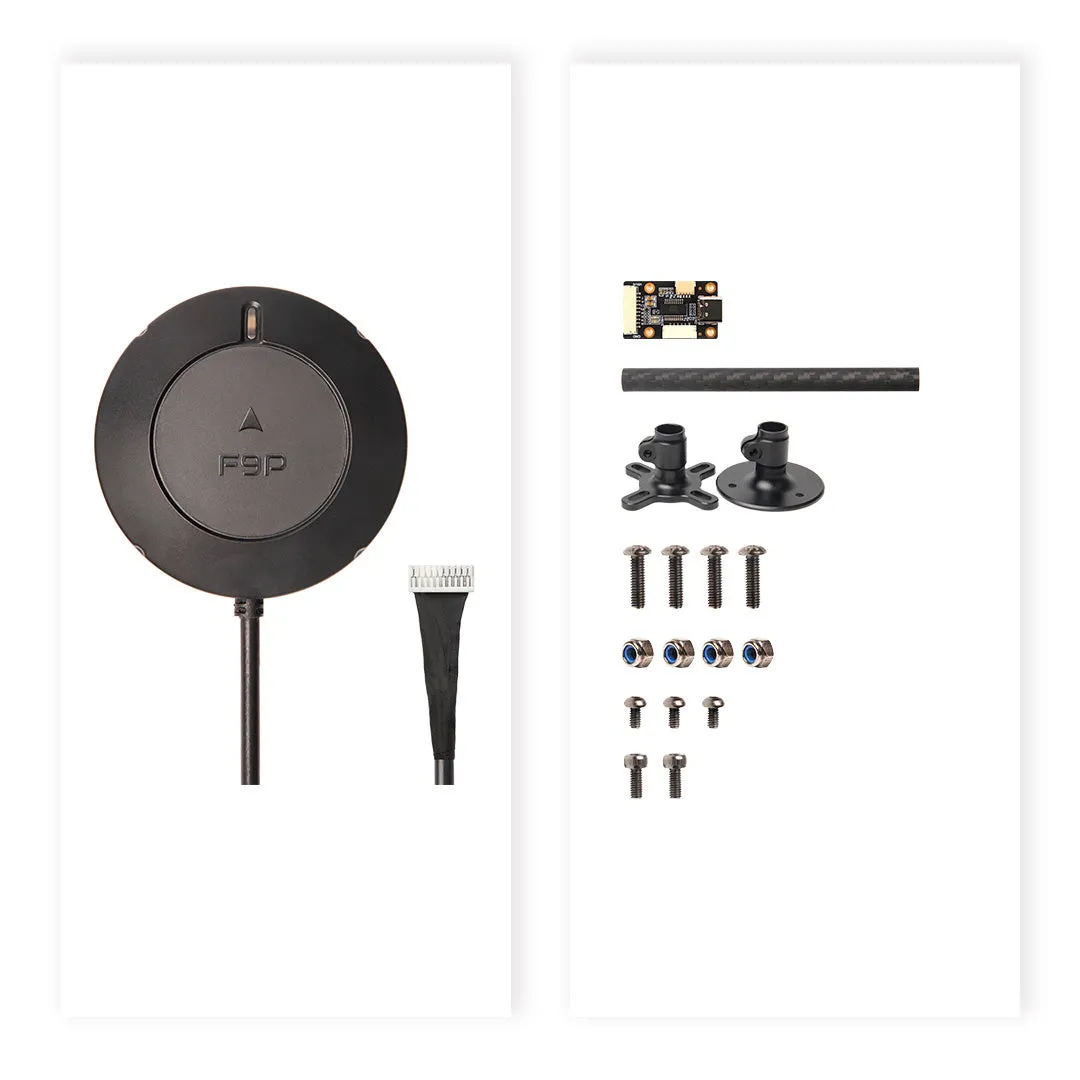

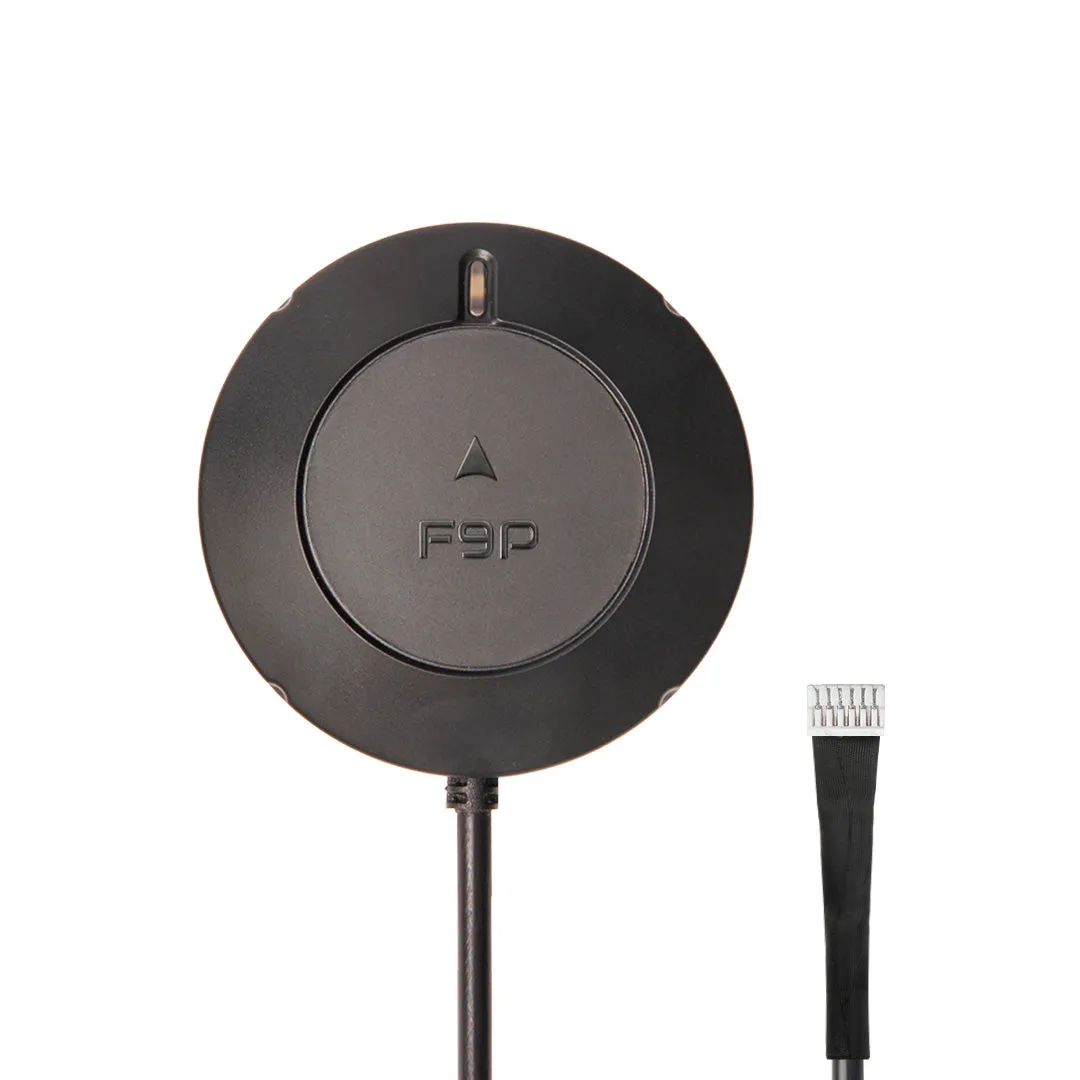

1x NEO-F9P Rover
1x UART to USB Converter (Only come with UART version)

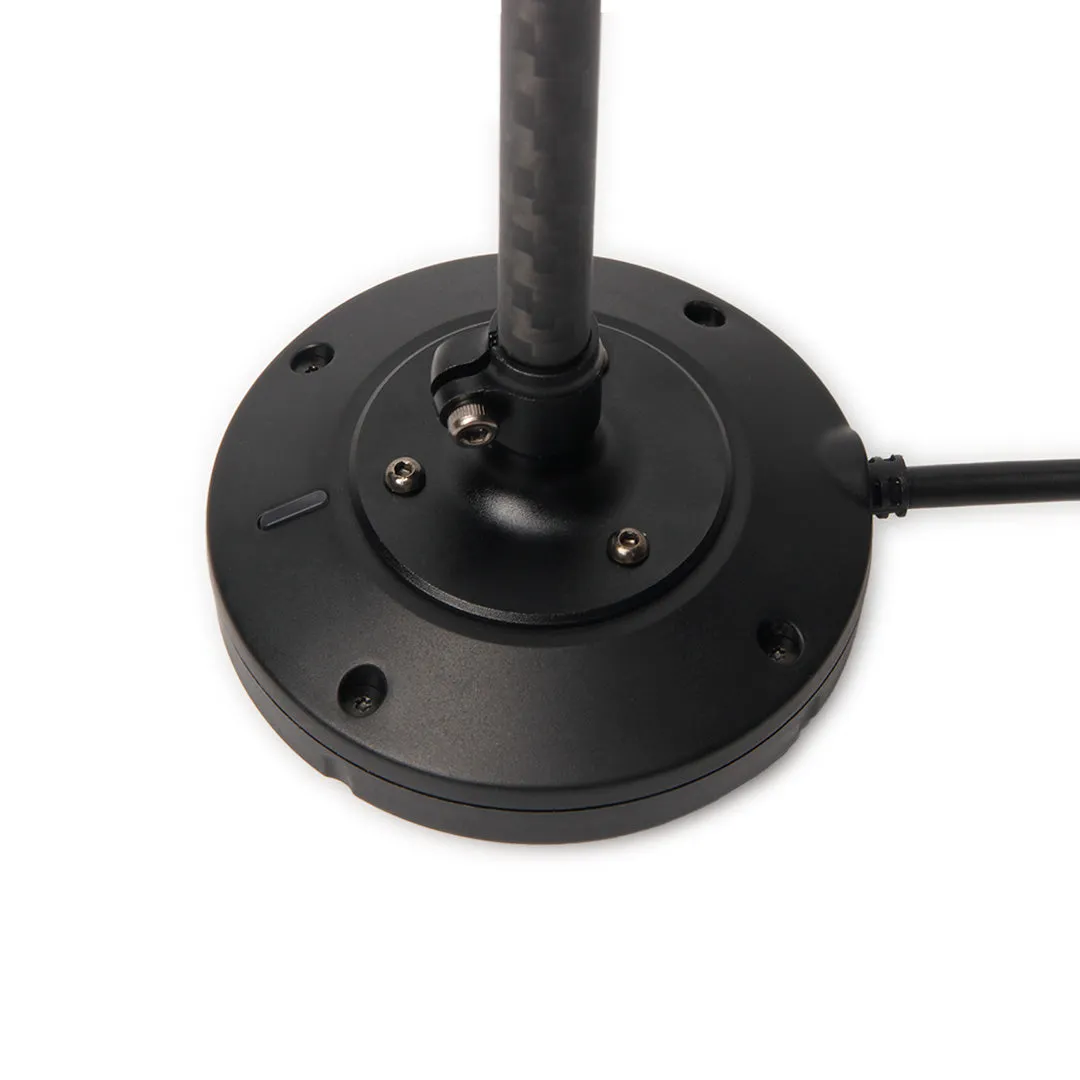

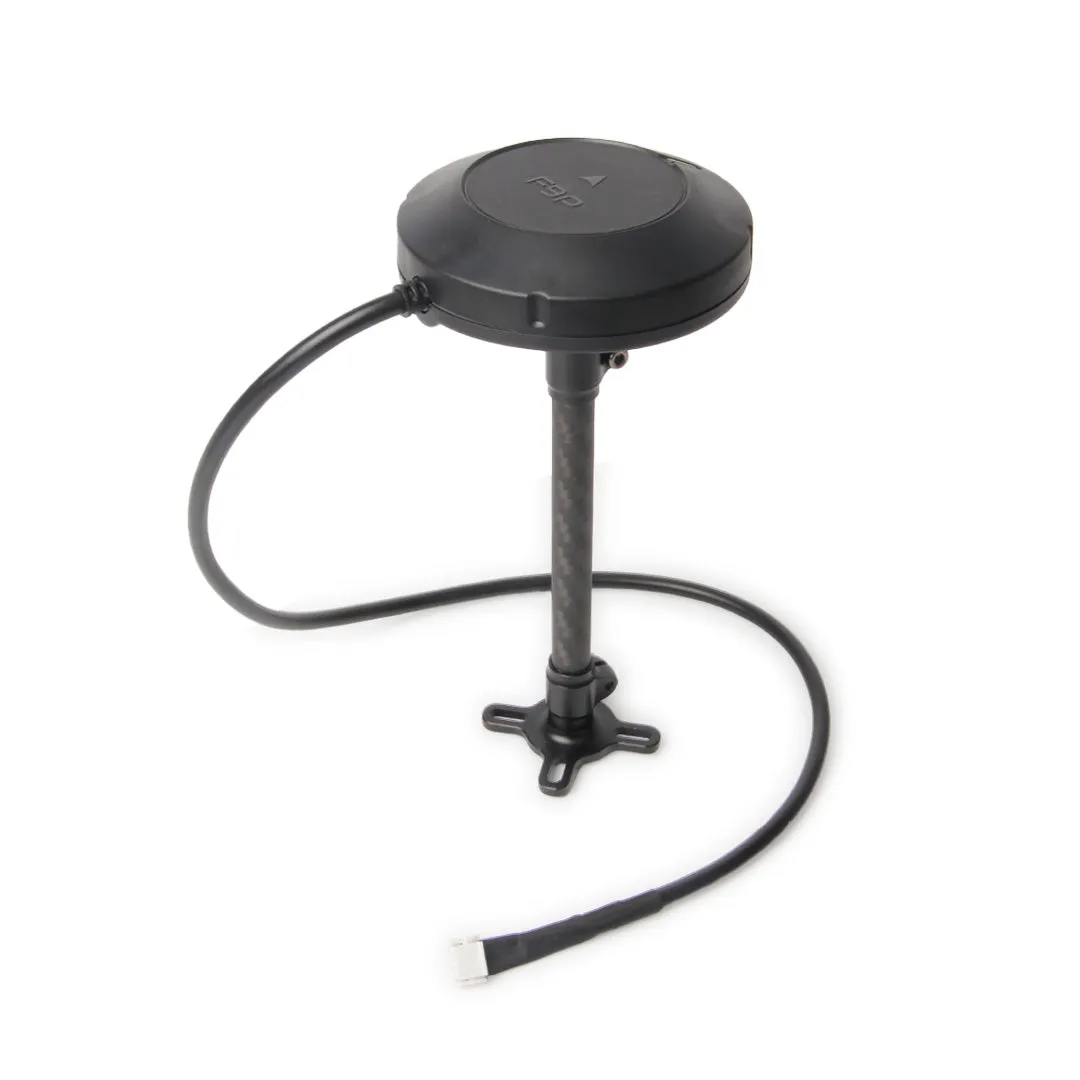

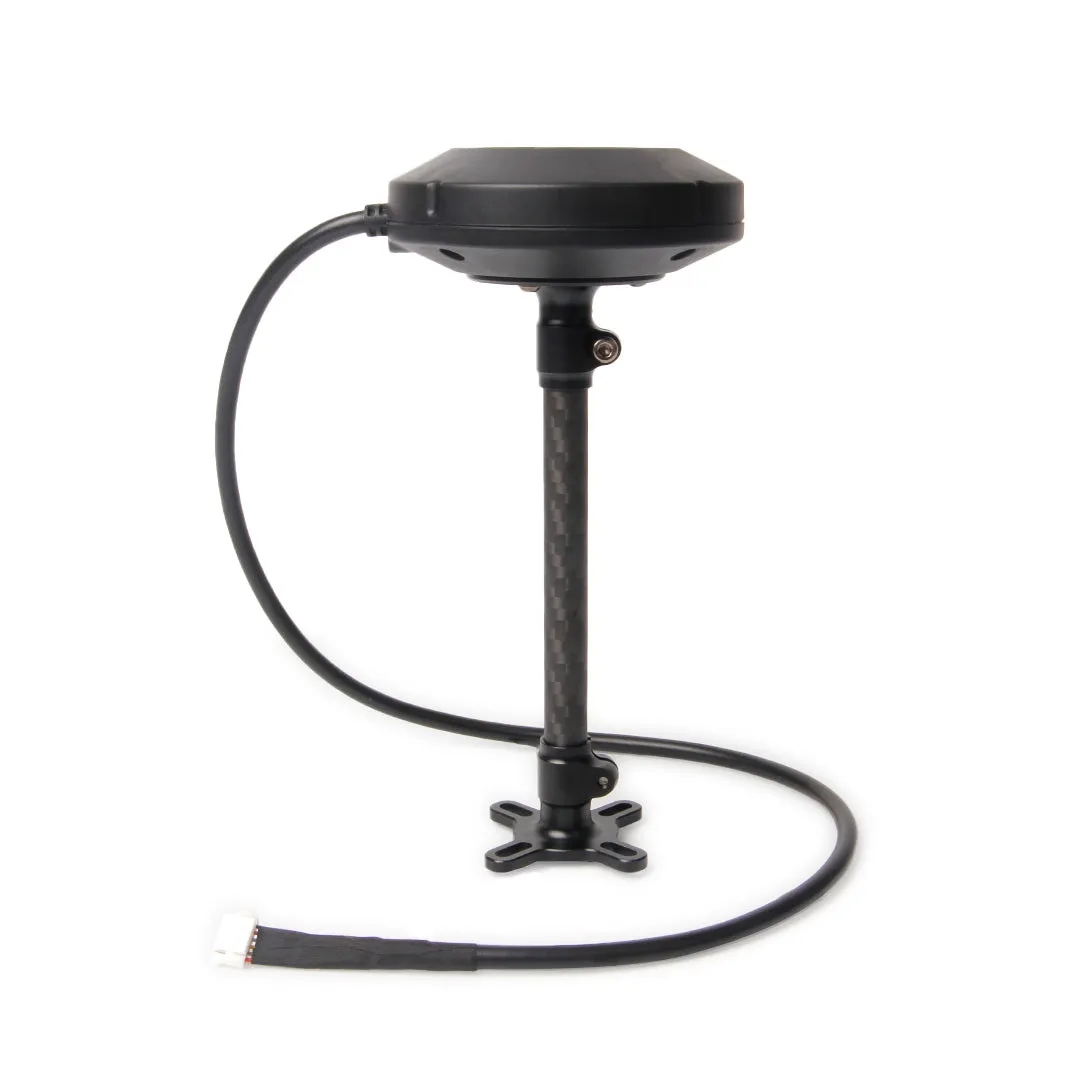

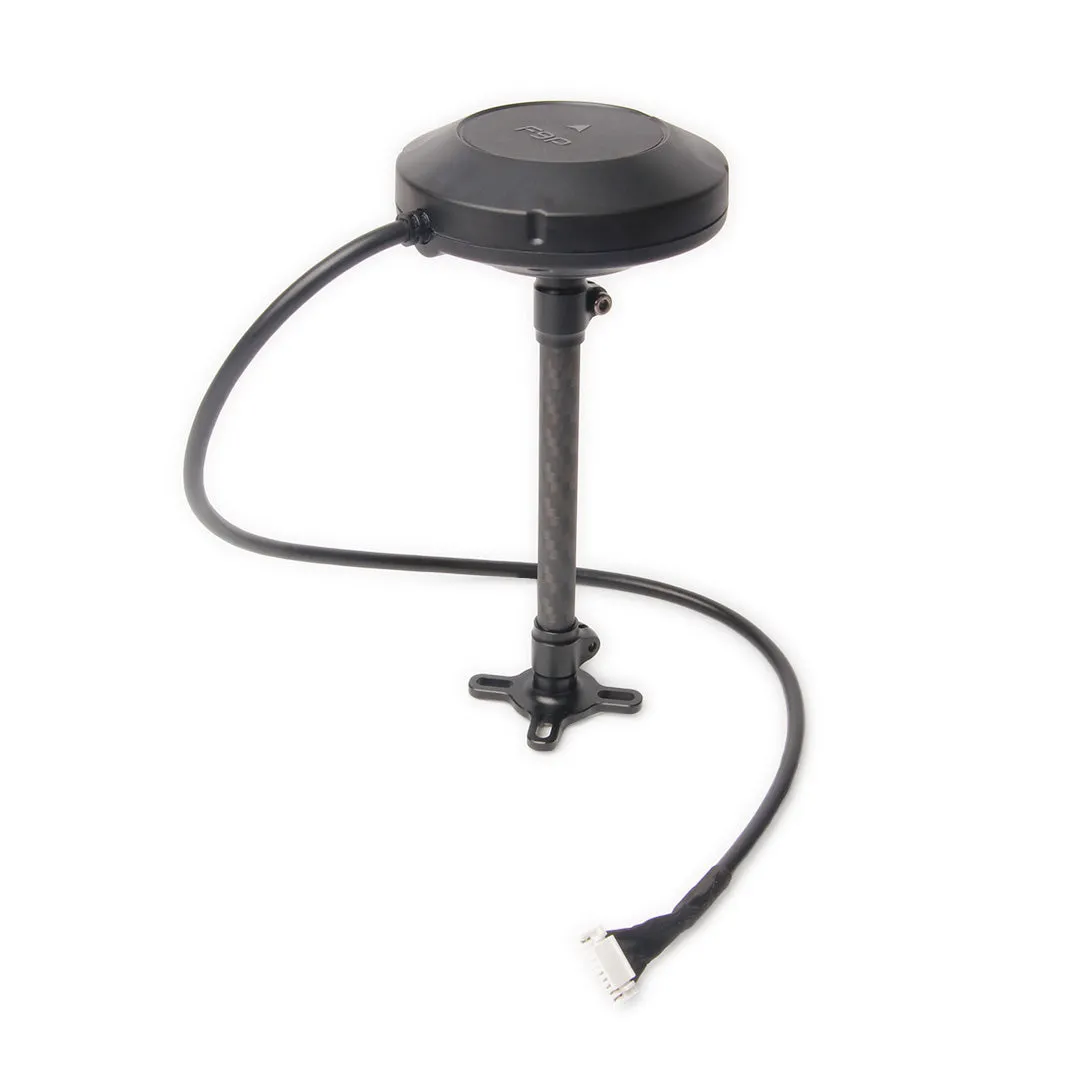

1x Carbon Fiber stand with mounting hardware
