Overview

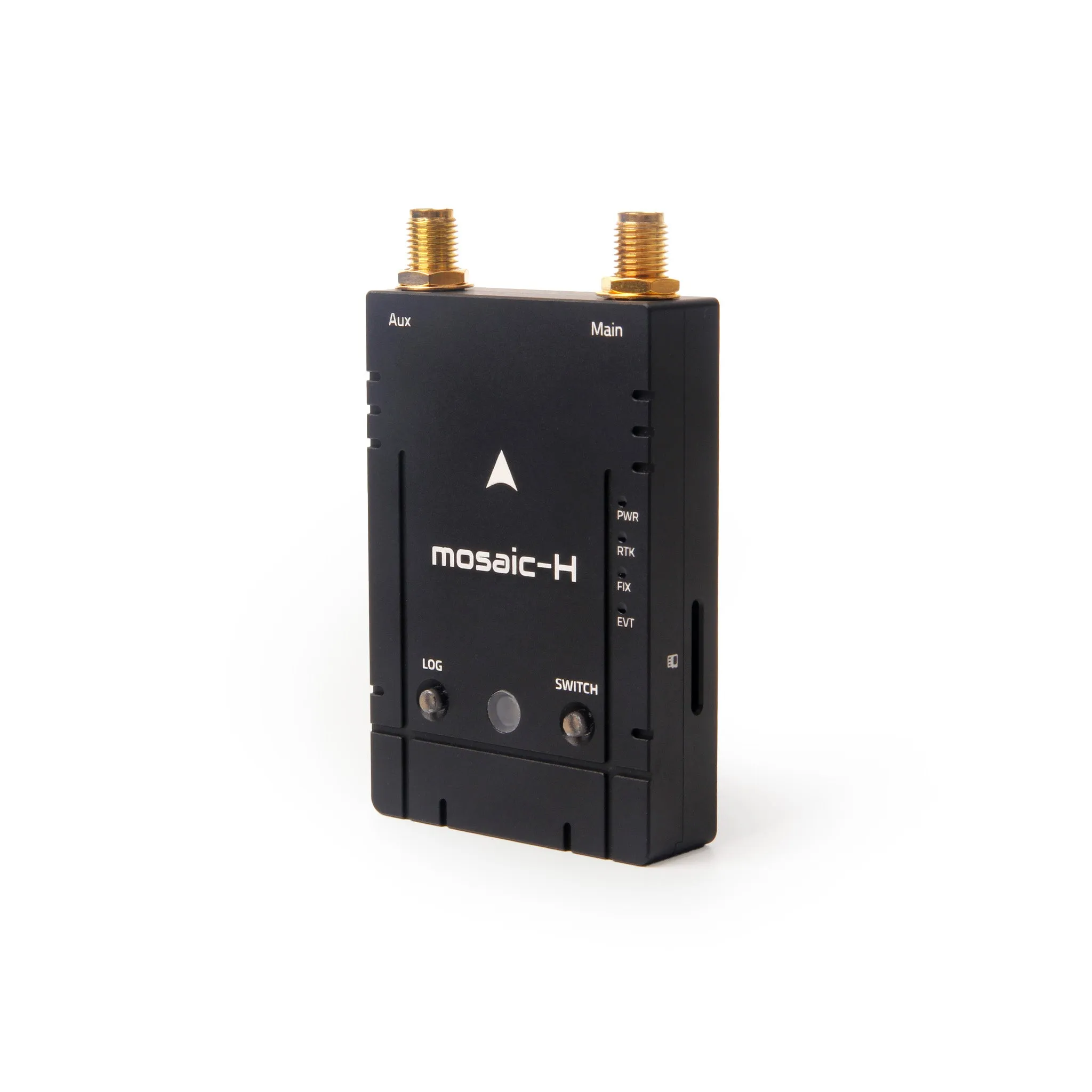

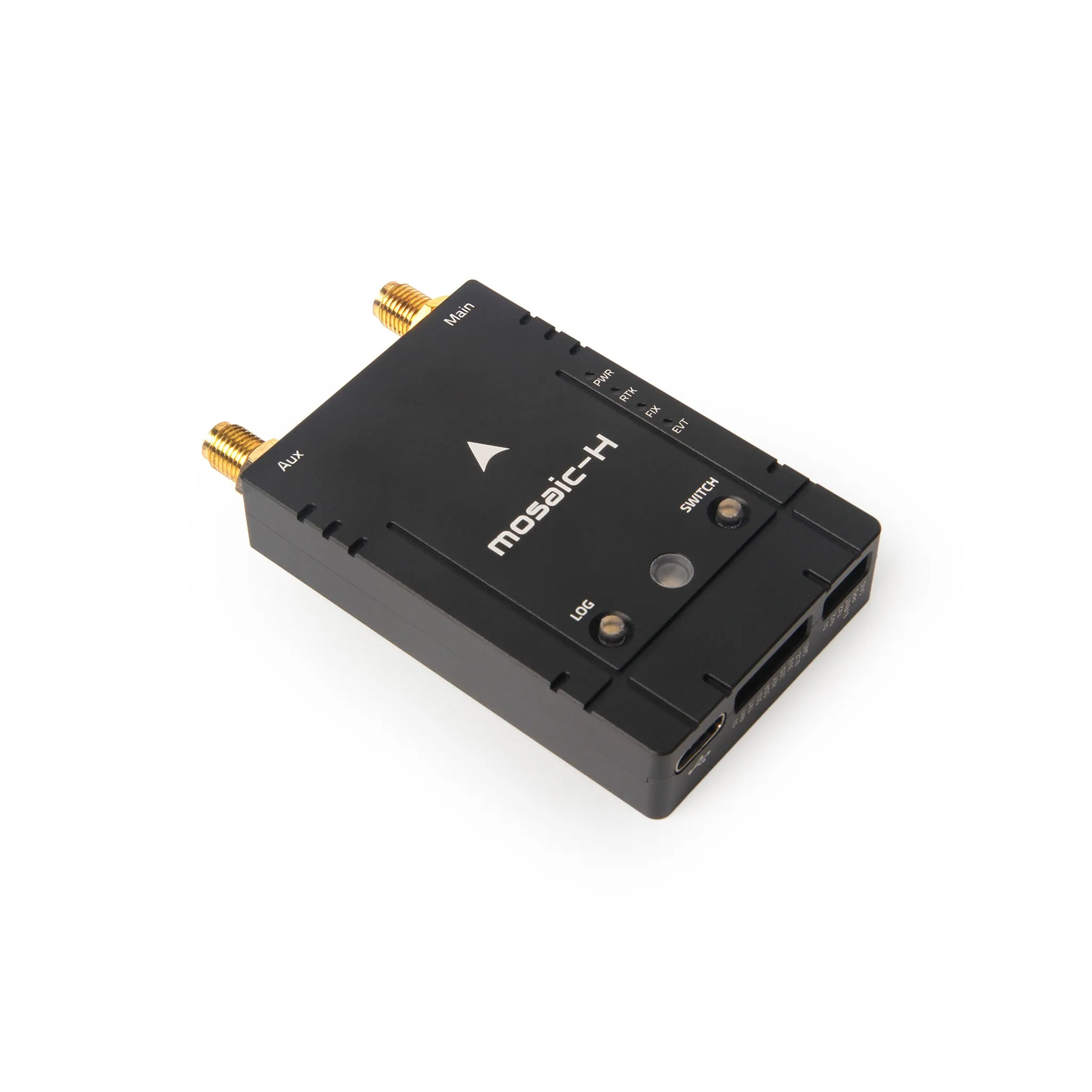

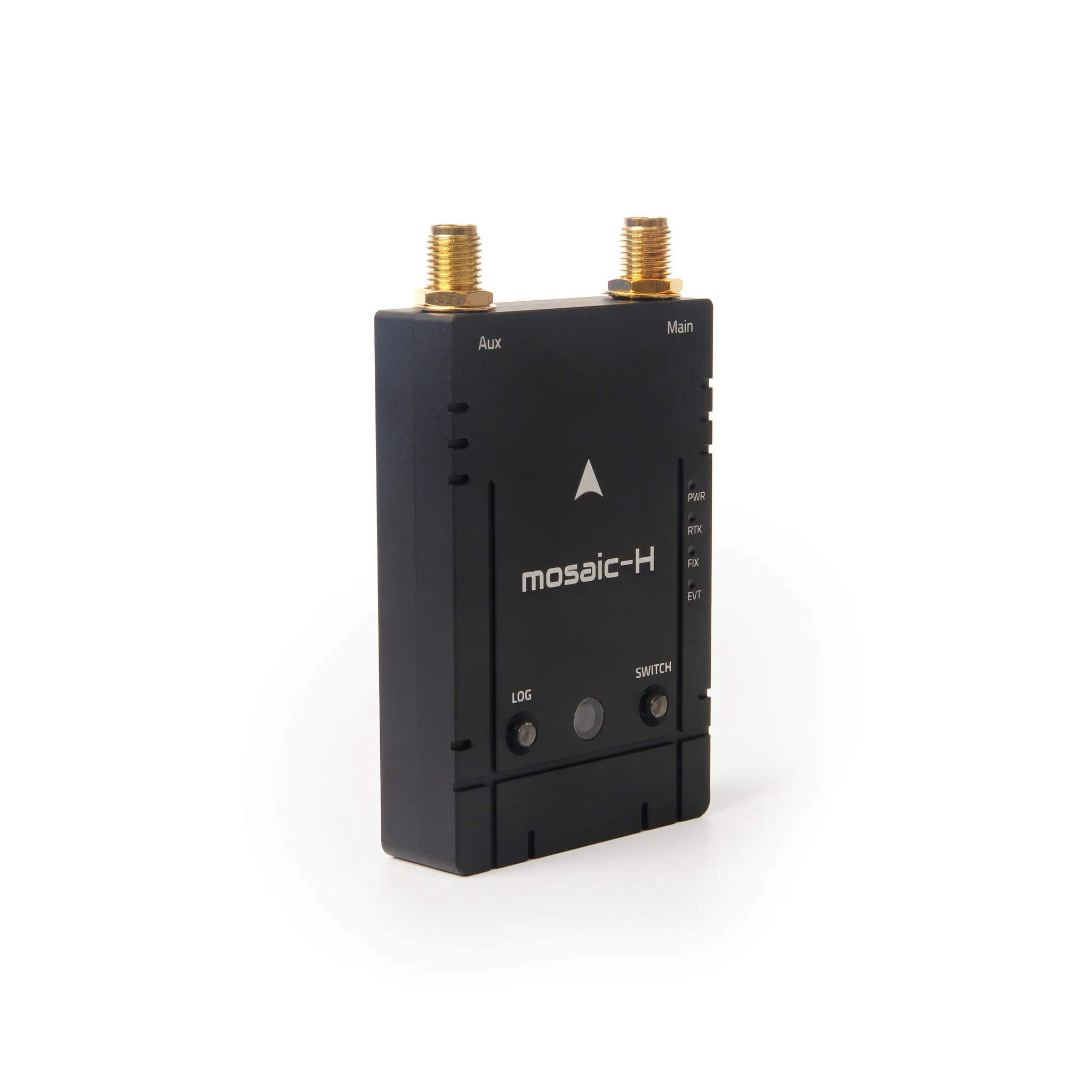

The Holybro mosaic-H is a cutting-edge RTK GPS module that harnesses the power of Septentrio's elite mosaic-H GNSS receiver. It comes with an IST8310 magnetometer, two high-performance antennas, and an aluminum CNC enclosure. It is packed with versatile features such as effortless configuration, spectrum analysis, data logging, and post-processing for a wide range of applications.

With its dual-antenna input, mosaic-H can provide compass-less YAW information to the autopilot (commonly called GPS Heading or Moving Baseline Yaw). By employing GPS as the yaw source instead of a traditional compass it eliminates the inaccuracies caused by magnetic interference from vehicle motors, electrical systems, and environmental sources like metallic structures or power lines, ensuring precise yaw reports to the autopilot and enhancing overall navigation reliability and performance in challenging environments.

Septentrio's mosaic-H GNSS receiver module boasts a suite of proprietary technologies that set it apart from the competition. Septentrio’s AIM (Advanced Interference Mitigation) technology safeguards against intentional and unintentional jamming sources, ensuring consistent and reliable performance even in challenging RF environments.

Septentrio’s LOCK technology ensures optimal tracking even under rapid antenna displacement in the event of high vibrations or shocks, maintaining high accuracy and stable operation in high-dynamic situations. It is ideal for demanding applications such as UAVs and robotics. Furthermore, Septentrio's advanced RAIM (Receiver Autonomous Integrity Monitoring) algorithm delivers unmatched integrity and reliability, providing a safety net for mission-critical applications.

Features

• Advanced anti-jamming, anti-spoofing solutions with AIM technology & OSNMA
• Dual antenna support for moving baseline yaw (GPS Heading) with just one GPS module
• All-in-view satellite tracking: multi-constellation, multi-frequency (Supports L1/L2/E5)
• Best-in-class RTK performance

Specification

Setup Guide & Reference Links:

• Pinout
• Dimension
• Setup & Getting Started (Ardupilot)
• Setup & Getting Started (PX4)
• Advanced Applications
• GPS LED Meaning
• Septentrio mosiac-H GNSS receivier datasheet
• Septentrio Download Page
• Septentrio PPK Application
• Septentrio RXTools (GNSS receiver control and analysis software)

• 1x H-RTK Mosaic
• 2x High Performance Antenna
• 2x Antenna Mount for H-RTK
• 2x SMA Cable(40CM)
• 2x GH 10P Cable
• 1x GH 6P Cable
• 1x GH 10P to 6P Cable
• 1x USB-C Cable
