FEATURES

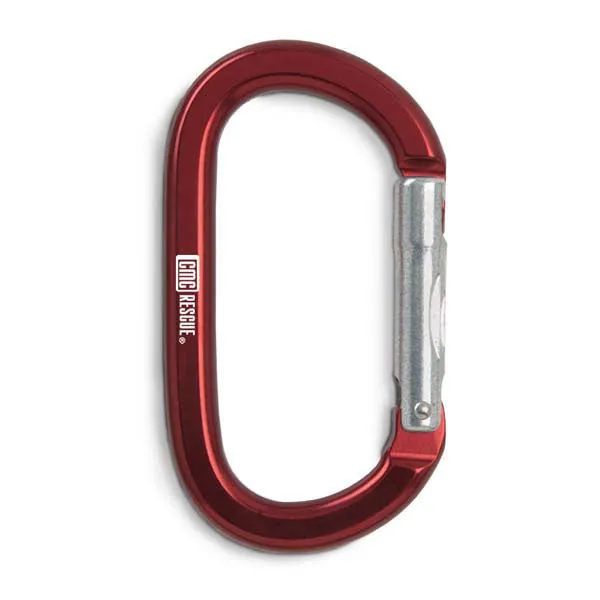

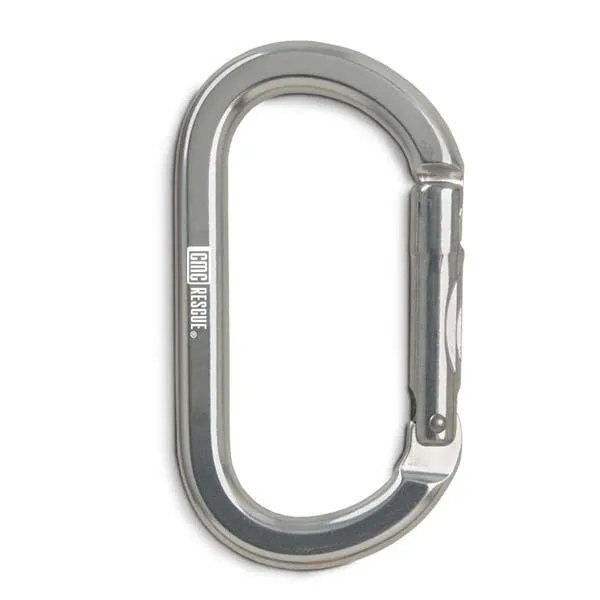

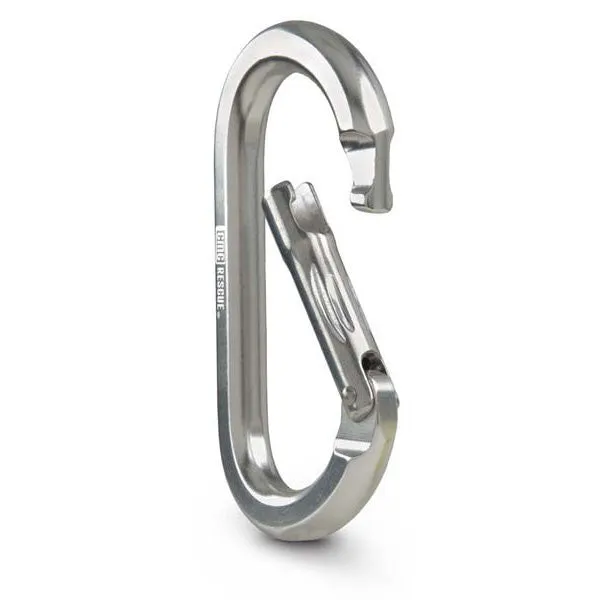

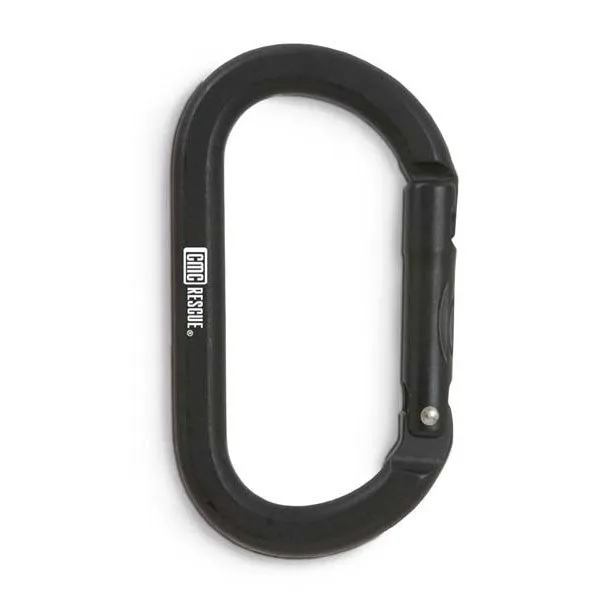

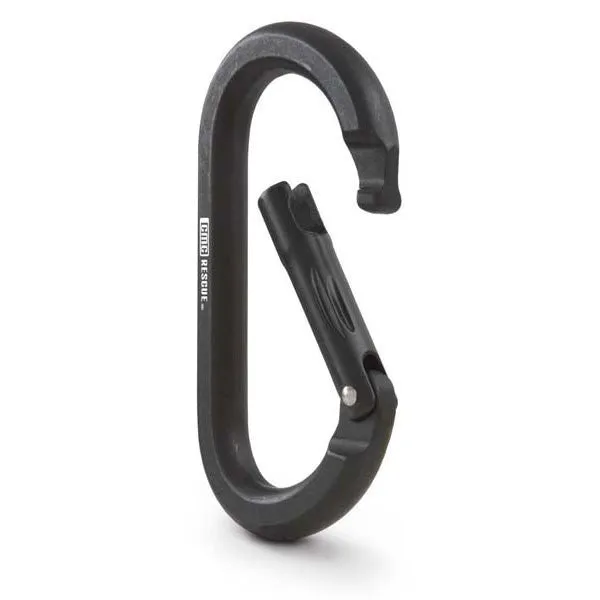

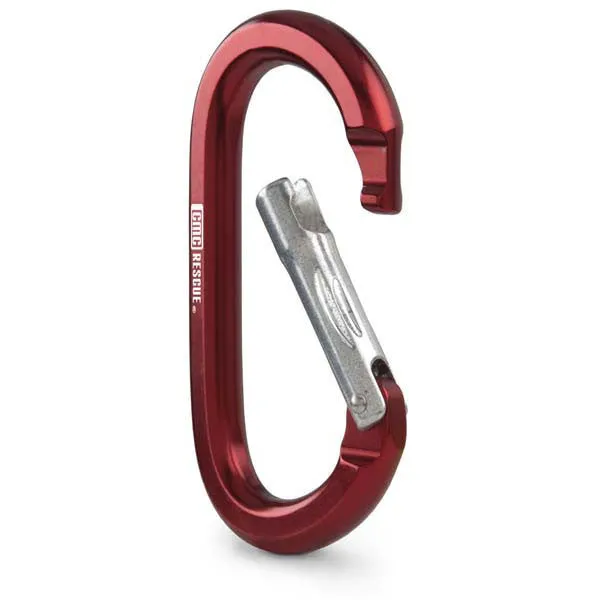

Non-locking carabiners can be used for racking equipment or as the keeper carabiner on a load-release strap or mariner's hitch. Non-locking carabiners should always be used in pairs, rigged opposite and opposed. Our oval aluminum carabiner features a unique key-lock design for snag-free operation and a side-swing gate for maximum gate opening. The oval design places equal amounts of force on the spine and gate, allowing the carabiner to maintain full rated strength regardless of the width of the web or rope clipped into it. It's also a good size to clip over the ropes coming out of a pulley to help mind a Prusik hitch.
Every carabiner is proof loaded.
| Oval | Major Axis | Minor Axis | Major, Gate Open |
|---|---|---|---|
| 30008X | 22kn | 10kn | 6kn |
Working-At-Height / Industrial Rope Access / Technical Rope Rescue
Working at height requires reliable, quality equipment. The Aluminum Oval Carabiner can be used with confidence in work-at-height maneuvers for industrial rope access or technical rope rescue when used in accordance with the regulatory safety standards it falls under. Always use life safety equipment and gear according to the regulatory safety standards for which it is classified and/or certified.
Work Safety
The CMC Rescue School offers training classes for work-at-height rope access and rope rescue. Some courses may include instruction about proper use of the Aluminum Oval Carabiner or similar carabiners used in rope rigging systems. CMC Rescue School provides training with course work in technical rescue, tower rescue, fire rescue, confined space rescue & entry, trench rescue, emergency building shoring (EBS), rope access, rope rigging as well as custom contract rope rescue and industrial rope access courses offering class work for the specific needs in the above disciplines or in search and rescue (SAR), urban search and rescue (USAR), helicopter air operations (heli-ops, helo-ops), swiftwater rescue and tactical maneuvers.
SPECIFICATIONS
| Option | Item | Product Weight | Gate Opening | Interior Length | Color | 3 sigma MBS |
|---|---|---|---|---|---|---|
| Brite | 300081 | 2.3 oz (65 g) | 1 in (25 mm) | 3.5 in (89 mm) | Brite | 22 kN (4,946 lbf) |
| Red | 300083 | 2.3 oz (65 g) | 1 in (25 mm) | 3.5 in (89 mm) | Red | 22 kN (4,946 lbf) |
| Black | 300085 | 2.3 oz (65 g) | 1 in (25 mm) | 3.5 in (89 mm) | Black | 22 kN (4,946 lbf) |
